Premium Standard Compliance Machine Guarding Systems for Safe Production

Metan specializes on providing standard compliance machine guarding system solutions. Standard compliance is the significance and value Why Metan machine guarding system exists. We deeply understand that how importance it is of safety to enterprises and workers, therefore, we take this challenge as our mission and are committed to providing standard compliance products to protect workers' personal safety and ensure safe production.

The height and opening of Metan machine guarding system are precisely set in accordance with international standards. Main factors we take into consideration are as shown below:

  • Range of movement of machine;
  • Space requirement for human-machine interaction during operation and maintenance periods;
  • Way of human-machine interaction, for example, human-machine interface;
  • Machine power source interface.

Choose an appropriate installation position based on the comprehensive assessment result of 4 aspects aforesaid and then set safe distances between machine guarding system and machinery accordingly.

Standard compliance machine guarding system for safe production
A logo of OSHA.
OSHA/2006-42-EC

In accordance with EU 2006/42/EC – New Machinery Directive and OSHA Occupational Safety and Health Administration regulations, two main principles on safety of machinery are set as shown below:

  • Any machinery, part, movement and operating process that may cause damage to operators, shall be protected by safety devices.
  • Any risk or hazard that may potentially injure operators and other workers shall be reduced or eliminated.
A logo of ISO.
ISO 13857 4.2.2

The height of Metan machine guarding system is set in accordance with ISO 13857 4.2.2 Reaching Over Protective Structures. For example,

  • The height of machine guarding system is set to 200 mm above the ground to avoid anyone going through the security fence from the bottom.
  • We will recommend machine guarding systems in various heights based on your specific risk levels.

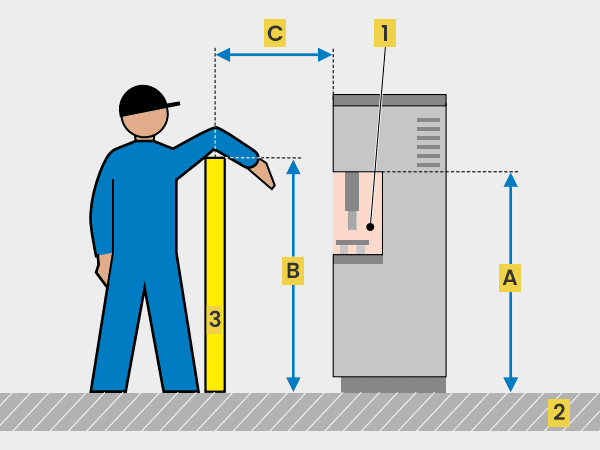

Design principle of horizontal safety distance to danger area
  • A Height of danger area
  • B Height of protective structure
  • C Horizontal safety distance to danger area
  • 1 Danger area
  • 2 Reference plane
  • 3 Protective structure

According to ISO 13857 standard, the height of machinery guarding system shall be set as shown below:

Height Options of Machine Guarding System – Low Risk
Height of Danger Zone Above Floor A (mm) Height of Machine Guarding System B (mm)
1000 1200 1400 1600 1800 2000 2200 2400 2500
Horizontal Distance to Danger Area C (mm)
2500 0 0 0 0 0 0 0 0 0
2400 100 100 100 100 100 100 100 100 0
2200 600 600 500 500 400 350 250 0 0
2000 1100 900 700 600 500 350 0 0 0
1800 1100 1000 900 900 600 0 0 0 0
1600 1300 1000 900 900 500 0 0 0 0
1400 1300 1000 900 800 100 0 0 0 0
1200 1400 1000 900 500 0 0 0 0 0
1000 1400 1000 900 300 0 0 0 0 0
800 1300 900 600 0 0 0 0 0 0
600 1200 500 0 0 0 0 0 0 0
400 1200 300 0 0 0 0 0 0 0
200 1100 200 0 0 0 0 0 0 0
Notes
  • Machine guarding systems less than 1,000 mm in height are not included because they do not sufficiently restrict movement of the body.
  • For danger zones above 2500 mm, the height of machine guarding system shall be 2,500 mm or more.
Height Options of Machine Guarding System – High Risk
Height of Danger Zone Above Floor A (mm) Height of Machine Guarding System B (mm)
1000 1200 1400 1600 1800 2000 2200 2400 2500 2700
Horizontal Distance to Danger Area C (mm)
2700 0 0 0 0 0 0 0 0 0 0
2600 900 800 700 600 600 500 400 300 100 0
2400 1100 1000 900 800 700 600 400 300 100 0
2200 1300 1200 1000 900 800 600 400 300 0 0
2000 1400 1300 1100 900 800 600 400 0 0 0
1800 1500 1400 1100 900 800 600 0 0 0 0
1600 1500 1400 1100 900 800 500 0 0 0 0
1400 1500 1400 1100 900 800 0 0 0 0 0
1200 1500 1400 1100 900 700 0 0 0 0 0
1000 1500 1400 1000 800 0 0 0 0 0 0
800 1500 1300 900 600 0 0 0 0 0 0
600 1400 1300 800 0 0 0 0 0 0 0
400 1400 1200 400 0 0 0 0 0 0 0
200 1200 900 0 0 0 0 0 0 0 0
Notes
  • Machine guarding systems less than 1,000 mm in height are not included because they do not sufficiently restrict movement of the body.
  • Machine guarding systems lower than 1,400 mm should not be used without additional safety measures.
  • For danger zones above 2400 mm, the height of machine guarding system shall be 2,700 mm or more.
A logo of ISO.
ISO 13857 4.2.4

Currently, the mesh openings of our hot sale products are mainly manufactured in accordance with ISO 13857 4.2.4 Reaching Over Protective Structures.

Opening Options of Machine Guarding System
Part of Body Opening e (mm) Safety Distance Sr (mm)
Slot Square Round
Fingertip

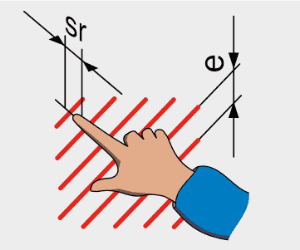

Fingertip safety distance
e ≤ 4 ≥ 2 ≥ 2 ≥ 2
4 <e ≤ 6 ≥ 10 ≥ 5 ≥ 5
Fingertip up to Knuckle Joint

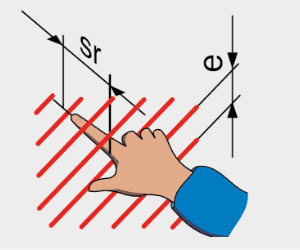

Safety distance of fingertip up to knuckle joint
6 <e ≤ 8 ≥ 20 ≥ 15 ≥ 5
8 < e ≤ 10 ≥ 80 ≥ 25 ≥ 20
Hand

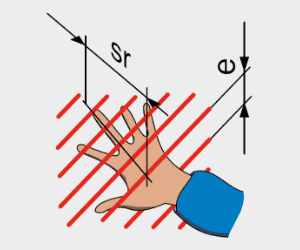

Safety distance of fingertip to hand
10 < e ≤ 12 ≥ 100 ≥ 80 ≥ 80
12 < e ≤ 20 ≥ 120 ≥ 120 ≥ 120
20 < e ≤ 30 ≥ 850 ≥ 120 ≥ 120
Arm up to Junction with Shoulder

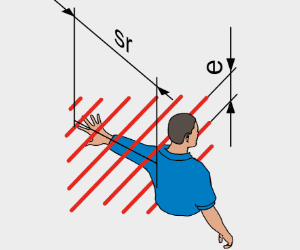

Safety distance of arm up to junction with shoulder
30 < e ≤ 40 ≥ 850 ≥ 200 ≥ 120
40 < e ≤ 120 ≥ 850 ≥ 850 ≥ 850

Meanwhile, we can customize standard compliance mesh opening, machine guarding system and a complete set of solution according to your practical working environment.
