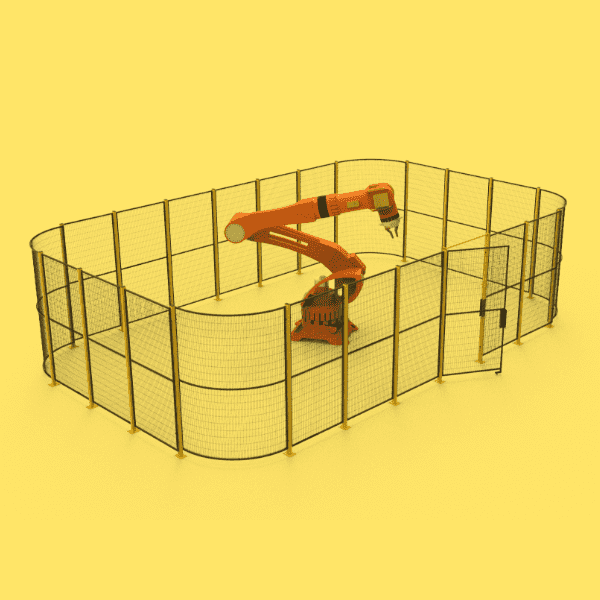

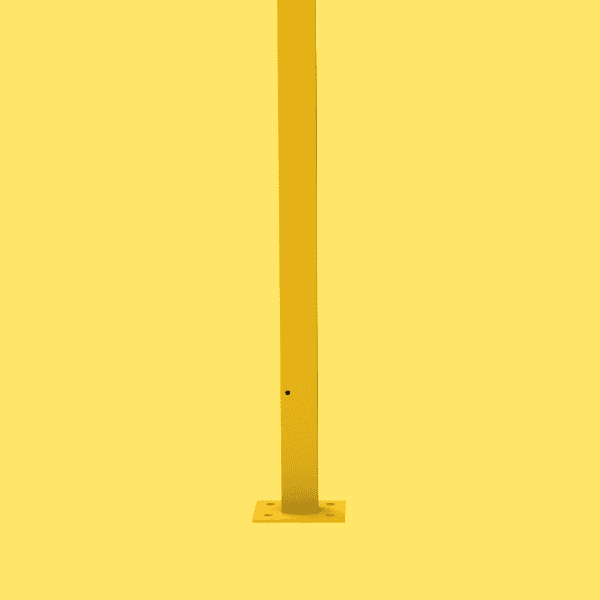

Post is a kind of hollow square post used to support the machine guarding fencing. Made of Q235 cold-rolled carbon steel square tubes, machine guarding post is durable enough to withstand damages arising from strong wind and temperature change over decades.

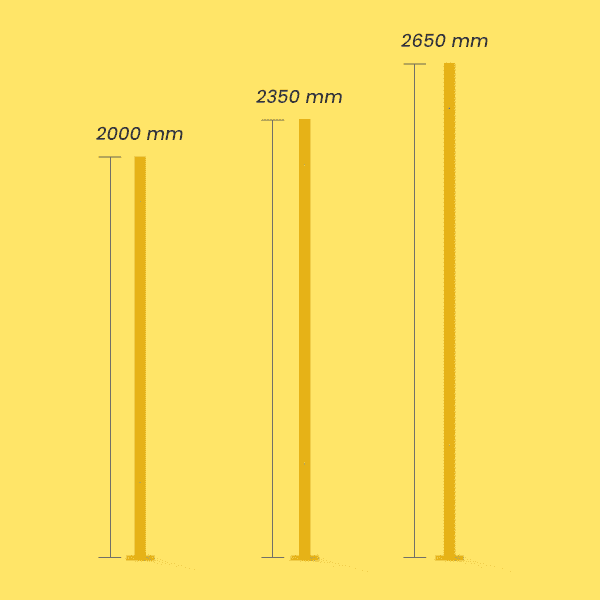

These posts are available in three heights: 2150 mm, 2350 mm and 2650 mm, to work with mesh panels for doors to suit to machines and robots of different heights.

Technical Data

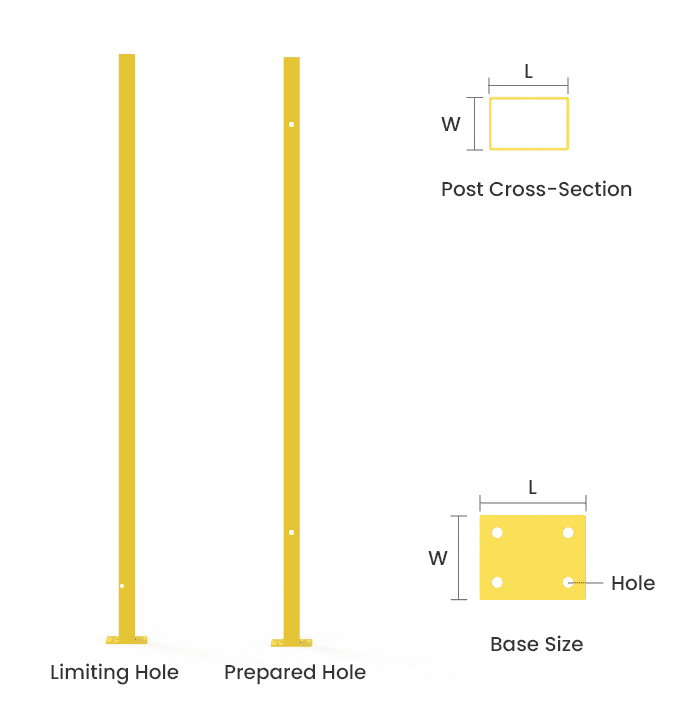

Machine guarding post dimension diagram
  • Panel Height: 2650/2350/2150 mm;
  • Post size (L × W): 50 × 50 mm, 60 × 40 mm, 40 × 40 mm, 60 × 60 mm;
  • Post thickness: 2.0 mm;
  • Base size (L × W): 160 × 120 mm, 150 × 120 mm, 200 × 200 mm;
  • Base thickness: 6.0/7.0/8.0 mm;
  • Other sizes are available upon request.
  • Color: yellow (RAL 1023).
Post Base Types

All posts and base plate sizes can be customized. And mounting hardware are included. Classic post sizes are 50 × 50 mm and 40 × 60 mm. Colors range from Zink yellow (RAL 1018), Graphite black (RAL 9011), Traffic red (RAL 3020) and Signal blue (RAL 5005). The height is usually 550 mm to 3500 mm.

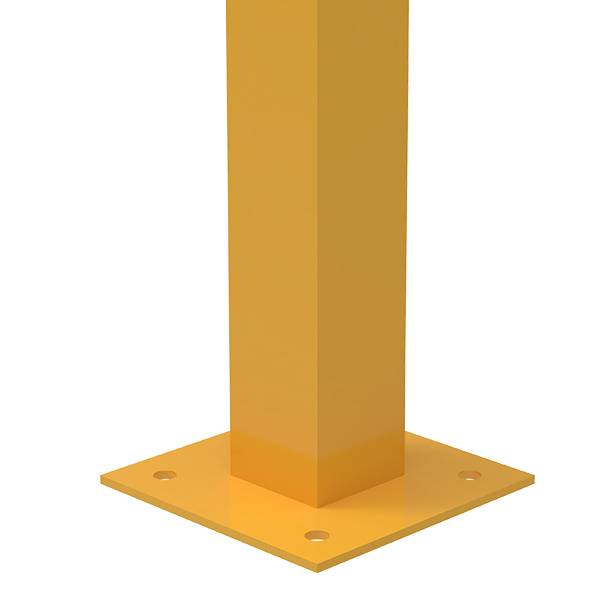

A yellow machine guard post with standard plate and 4 holes.
Standard Plate with 4 Holes
  • Line posts
  • Corner posts
  • Swing door posts

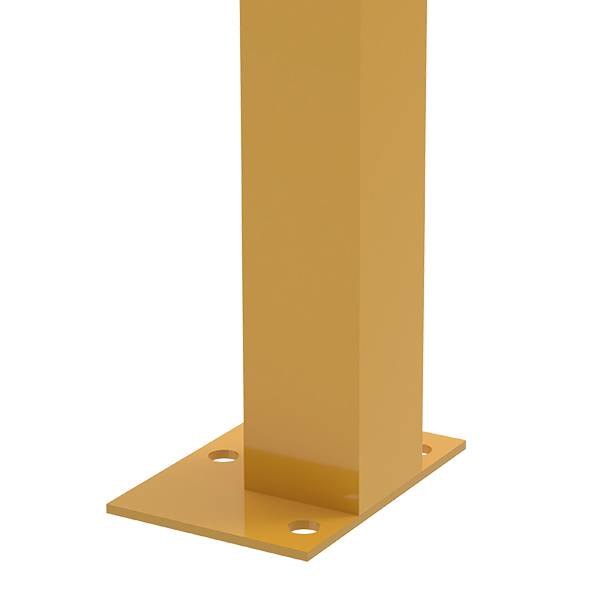

A yellow machine guard post with standard plate and 3 holes.
Standard Plate with 3 Holes
  • Line posts
  • Corner posts
  • Sliding door posts

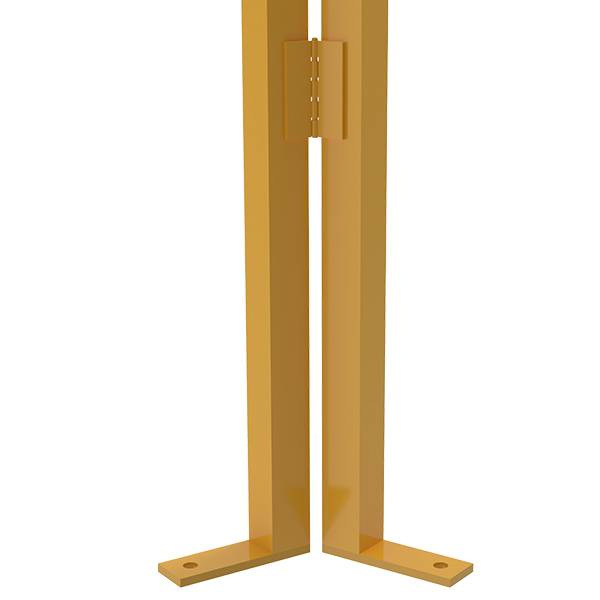

Two yellow machine guard posts are connected with a hinge.
Standard Plate – Hinge
  • Adjustable corner posts for non-90 degree corners

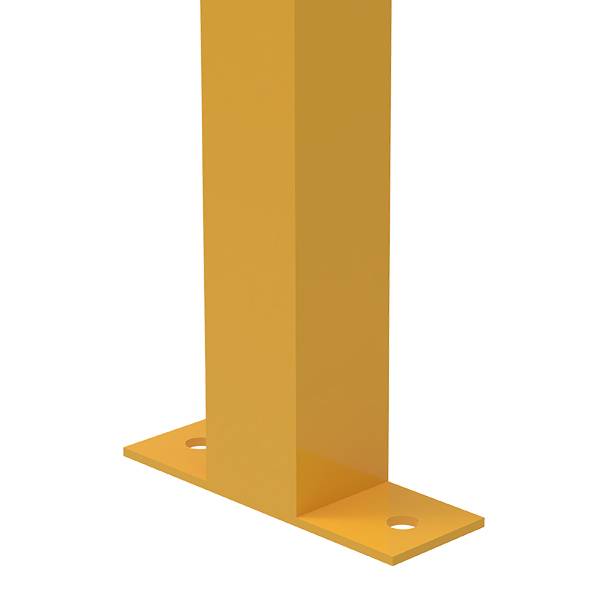

A yellow machine guard post with standard plate and 2 holes.
Standard Plate with 2 Holes
  • Line posts for straight runs
  • 90-degree corners

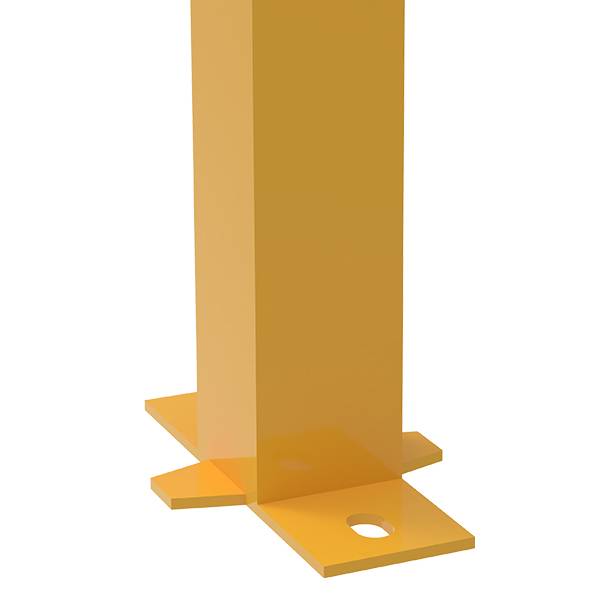

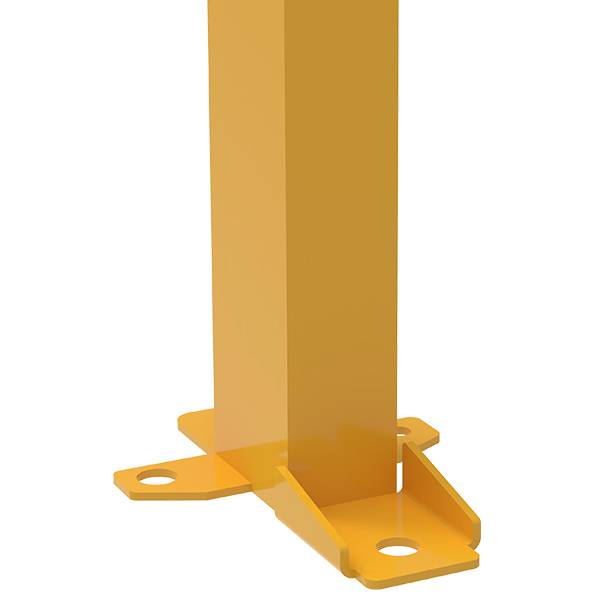

A yellow machine guard post with cross plate
Cross Plate with 4 Holes
  • 40×60 mm steel posts
  • Line posts
  • Corner posts
  • Door posts
A yellow machine guard post with cross plate
Cross Plate with 2 Holes
  • Line posts
  • Corner posts
  • Door posts
Post & Mesh Panel Connection

Posts and mesh panels are connected in two ways: by bolts or by fixed clamps. Posts with prepared holes can be connected to mesh panels directly with bolts for fixing. Posts with limiting holes can be connected to mesh panels with the upper and lower fixed clamps.

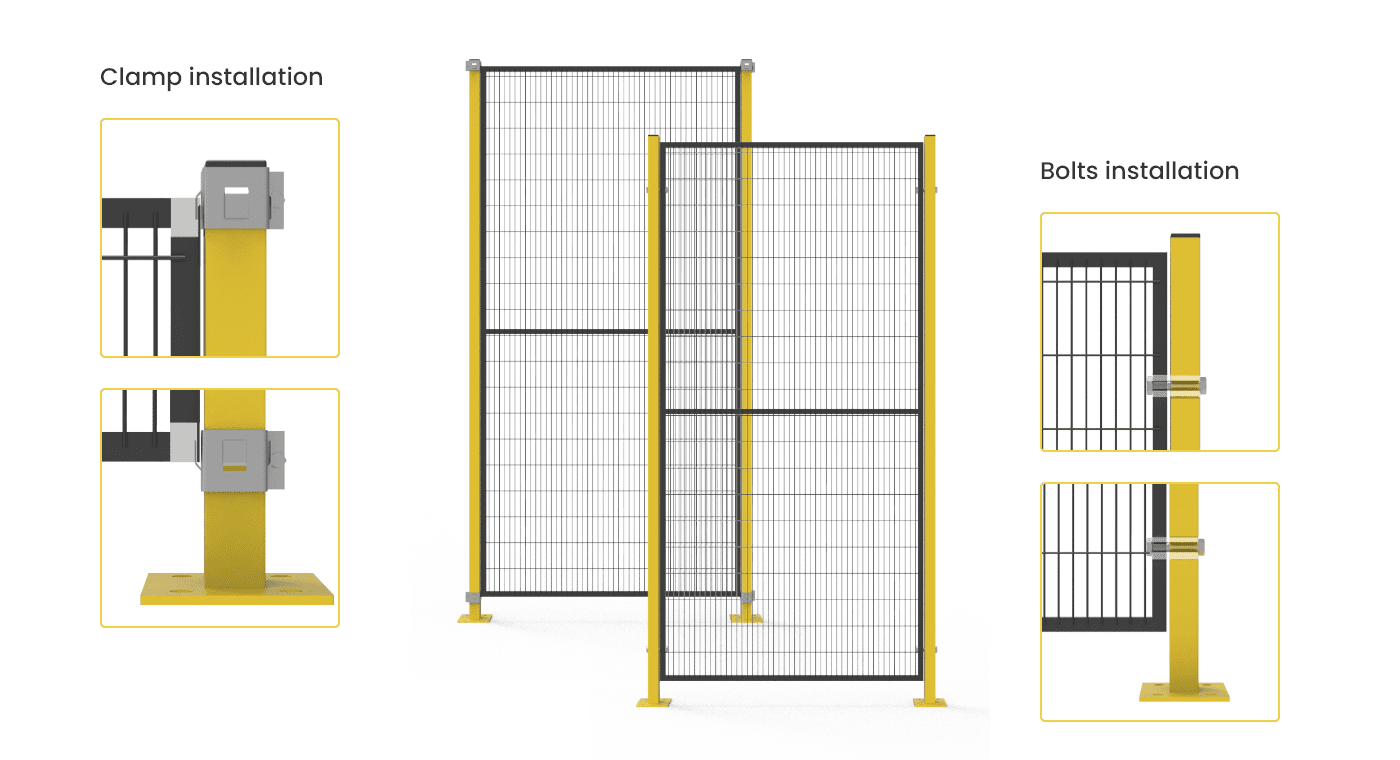

Post: Clamp Installation and Bolts & Nuts Installation
Post Base Installation Types

Post bases require different fasteners when being installed on different floor types. The floor types we often install on include concrete floors, wood floors, grating floors and steel plate underneaths and work with expansion bolts, wood screws, J-bolts and hinged bolts respectively for installation and fixing. View the detailed Machine Guarding Fencing Flooring Installation at the technology page.

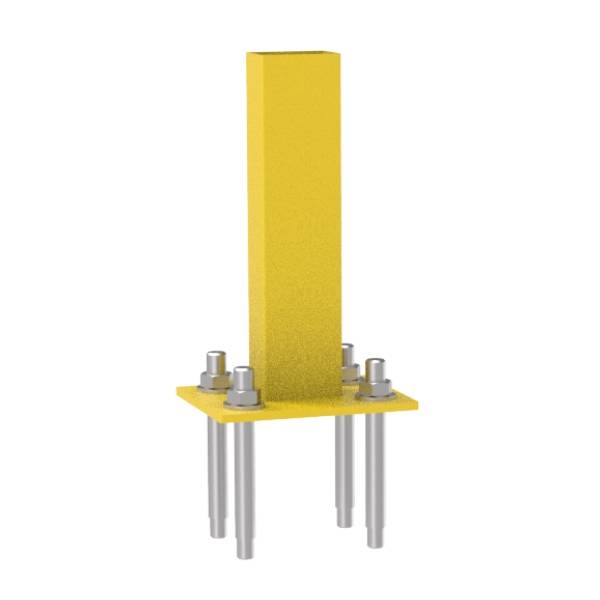

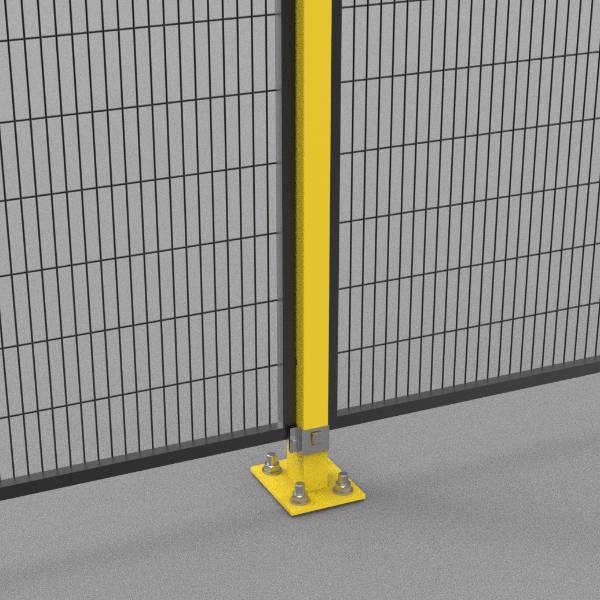

Machine guarding post is fixed on the concrete floor with 4 expansion bolts. Mesh panels and post are fixed on the concrete floor with expansion bolts.

Concrete (anchor bolt M10 x 86)

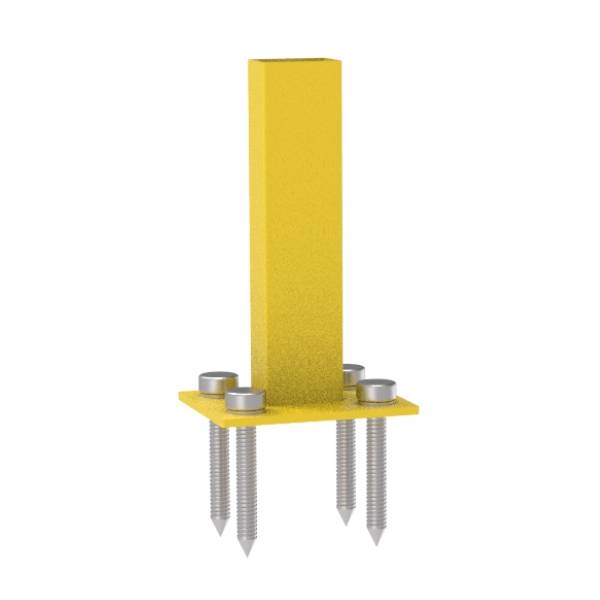

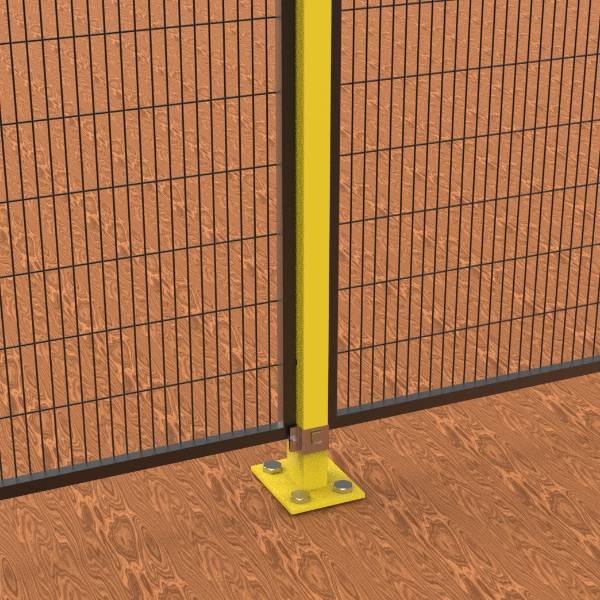

Machine guarding post is fixed on the wood floor with 4 wood screws. Mesh panels and post are fixed on the wood floor with wood screws.

Wood (screw for wood M10 × 45)

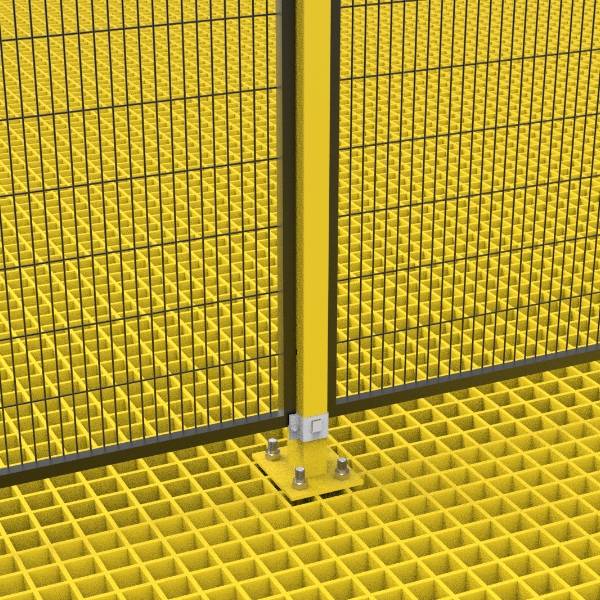

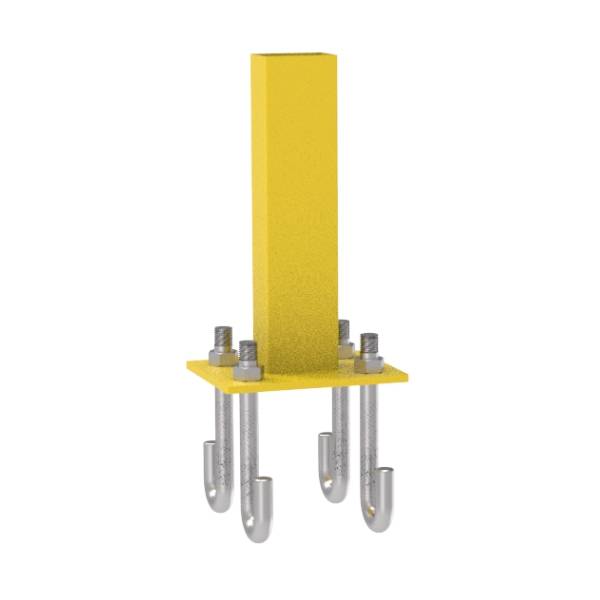

Machine guarding post is fixed on the grating floor with 4 J-bolts. Mesh panels and post are fixed on the grating floor with J-bolts.

Grating 32–48 mm (M10 J-hook)

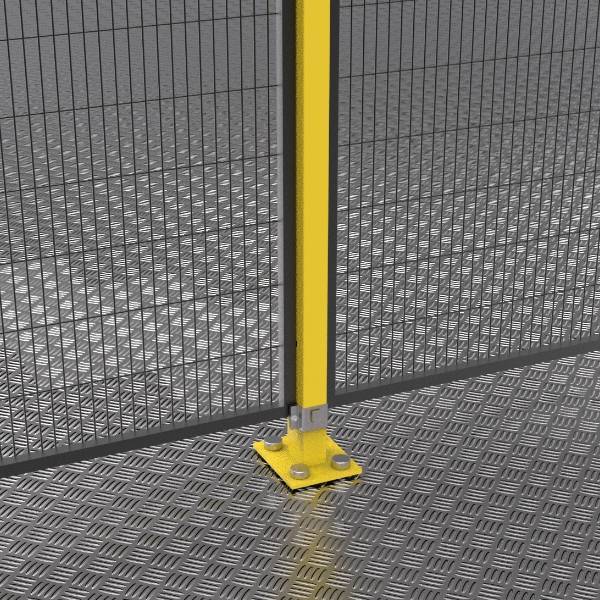

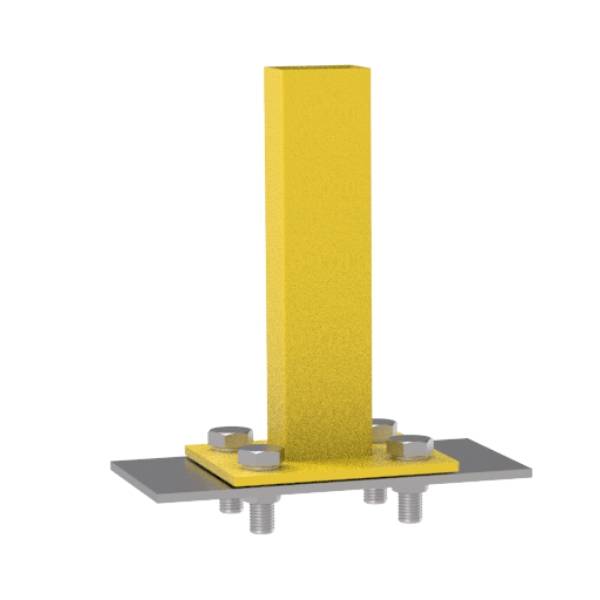

Machine guarding post is fixed on the steel plate underneath with 4 hinged bolts. Mesh panels and post are fixed on the steel plate floor with hinged bolts.

Steel plate underneath (M10 × 60)
