Aluminum Profiles Robot Fences – Efficient Machine Guarding System

The aluminium robot safety fence is easy to install. The aluminium profile an accommodate extra lighting and panel facilities or mesh in order to provide passive protection. The panels and mesh can simply be placed in the groove. The surface is beautiful and corrosion resistant.

The sizes are not fixed, all the panels are customized. Common mesh is 40 × 40 × 4 mm, but other mesh is available.

The common aluminium profile is 4040/4080/40120/40160. The color is natural silver anodised, black, or to be customized.

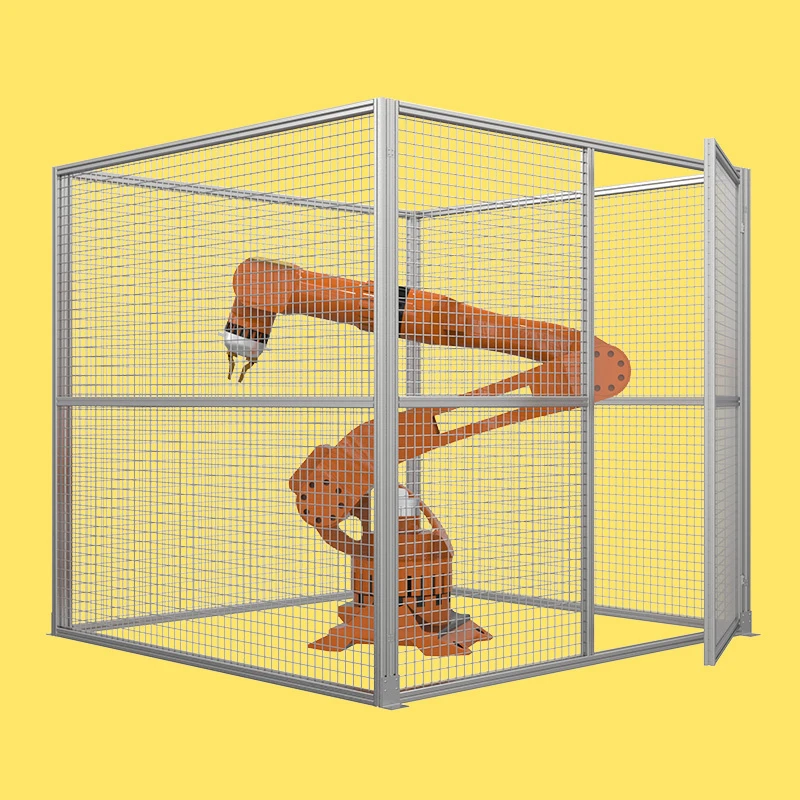

A set of aluminum profile robot fence with a swing door.
Panel
  • Material: hot dipped galvanized or powder coating steel wires
  • Wire diameter: 3-5 mm
  • Mesh opening:25 × 25 mm, 30 × 30 mm, 40 × 40 mm, 50 × 50 mm
  • Dimensions:customizable as drawings or designs
  • Color:galvanizing, black, yellow or other RAL colors
Aluminum profiles
  • Material: 6063 T5 Aluminum Alloy
  • Profile structure: various
  • Profile sizes: 4040, 4080, etc.
  • Color: natural silver, black or other customized colors

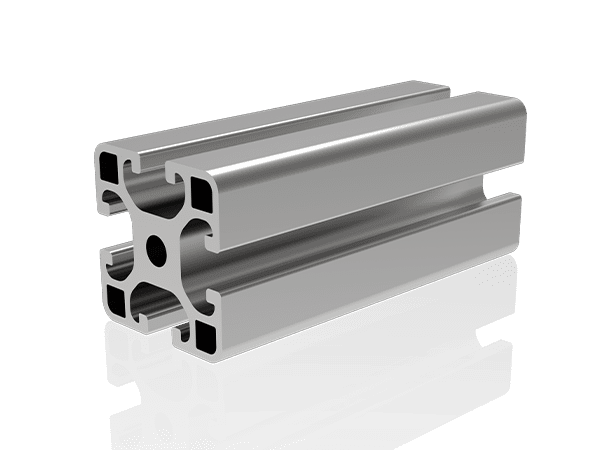

A cross section of 4040 aluminum profile of aluminum profile robot fence.

4040

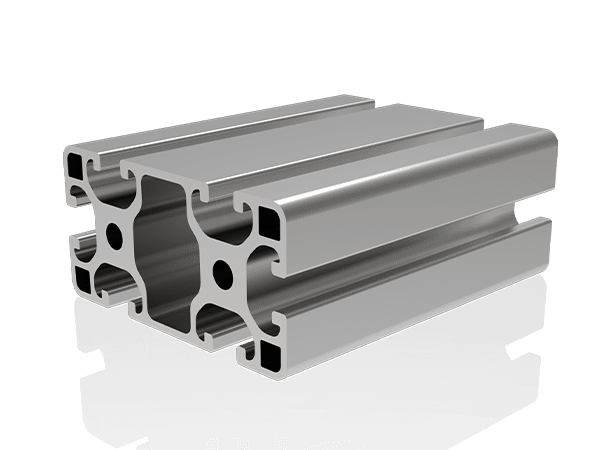

A cross section of 4080 aluminum profile of aluminum profile robot fence.

4080

Style of the aluminum profile: 30 series, 35 series, 38 series, 40 series

Table 1: Specifications of Aluminum Profile
- Item Weight(kg/m) Wall Thickness(mm)
30 series 30-1 4.30 2.2
30-2 8.60 4.0
35 series 35-1 1.35 2.0
35-2 1.70 1.8
35-3 2.90 1.8
38 series 38-1 1.77 2.5
38-2 1.36 2.0
40 series 40-1 1.30 1.1
40-2 1.95 2.0
40-3 1.55 1.8
40-4 2.20 2.8
40-5 1.25 1.2
40-6 1.95 2.0
40-7 1.98 2.0
40-8 2.00 2.0
40-9 2.20 2.7
40-10 1.60 1.5
40-11 1.80 2.0
40-12 1.75 2.0
40-13 1.60 1.5
40-14 1.65 1.5
40-15 2.40 3.8
40-16 2.02 2.0
40-17 2.10 /
40-18 3.00 4.5
40-19 1.50 2.9
40-20 1.90 2.0
40-21 1.45 1.8
40-22 3.05 2.0
40-23 3.50 2.0
40-24 3.30 2.0
40-25 2.75 1.4
40-26 3.60 2.8
40-27 2.60 1.5
40-28 2.80 1.5
40-29 3.80 2.5
40-30 5.43 4.5
40-31 4.85 4.0
40-32 4.04 3.8
40-33 4.20 /
40-34 4.40 2.5
40-35 4.05 1.8
40-36 4.90 1.8
40-37 4.80 2.0
40-38 7.20 3.0
Connection Accessories

Simple connection accessories can guarantee the robot fence or machine guarding system firm and durable.

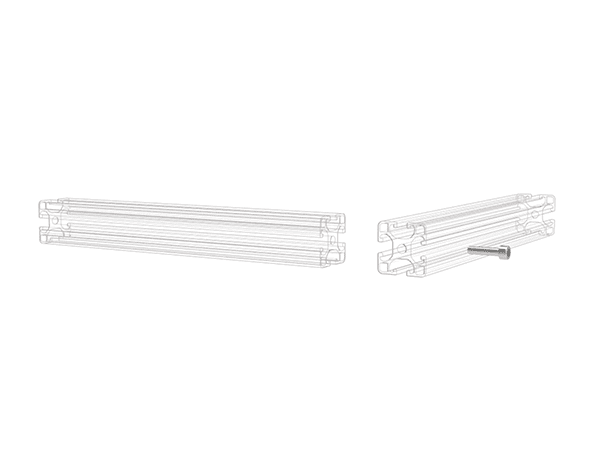

A bolt and the detail of corner posts of aluminum profile machine guarding connection.

BoltsConnect corner posts

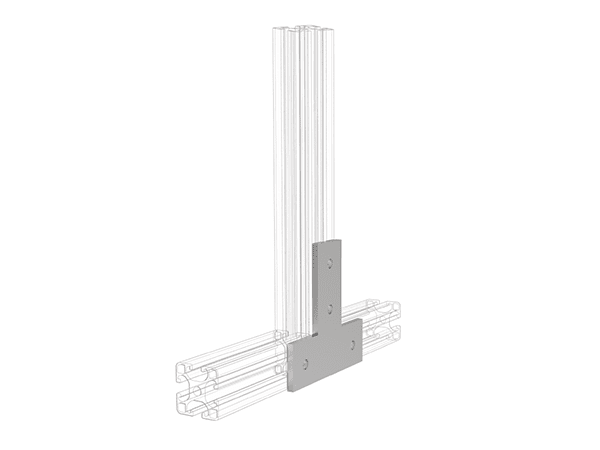

A 4 hole T plate and the detail of intermediate posts of aluminum profile machine guarding connection.

4 hole T plateConnect intermediate posts

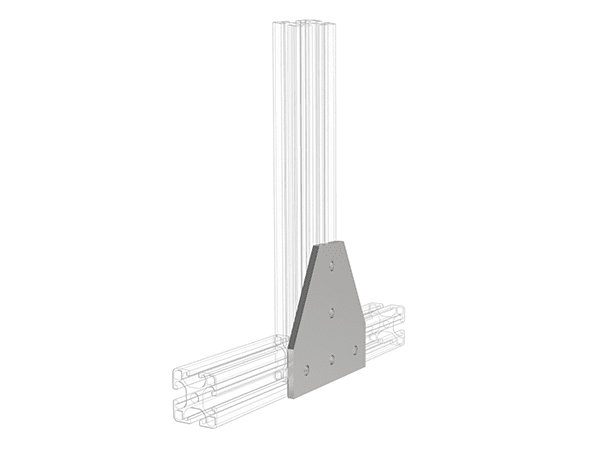

A 5 hole T plate and the detail of intermediate posts of aluminum profile machine guarding connection.

5 Hole T PlateConnect intermediate posts

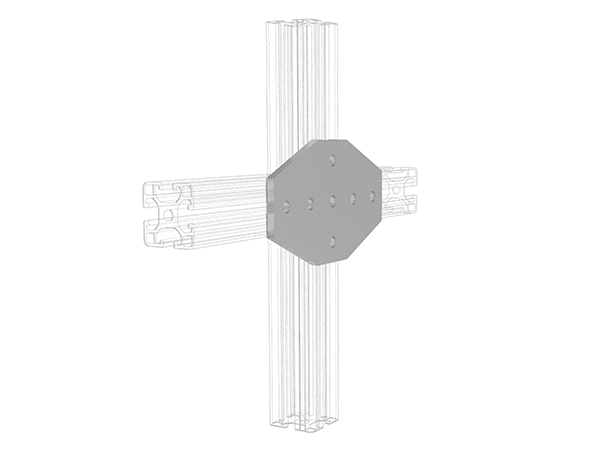

A 7 hole cross joining plate and the detail of intermediate posts of aluminum profile machine guarding connection.

7 Hole Cross-Joining PlateConnect cross profiles

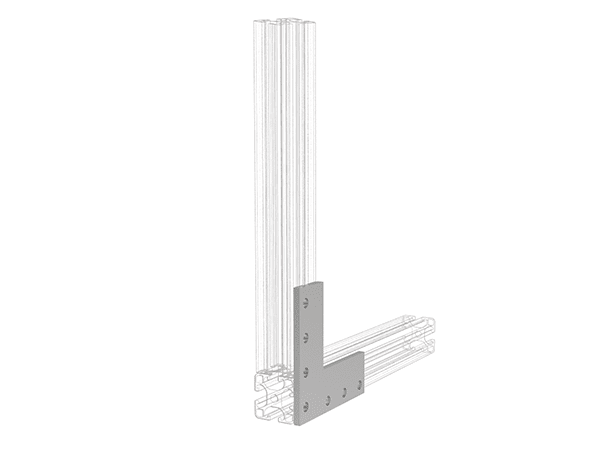

A 7 hole L plate and the detail of corner posts connection of aluminum profile robot fence gate.

7 hole L plateConnect corner posts of gate

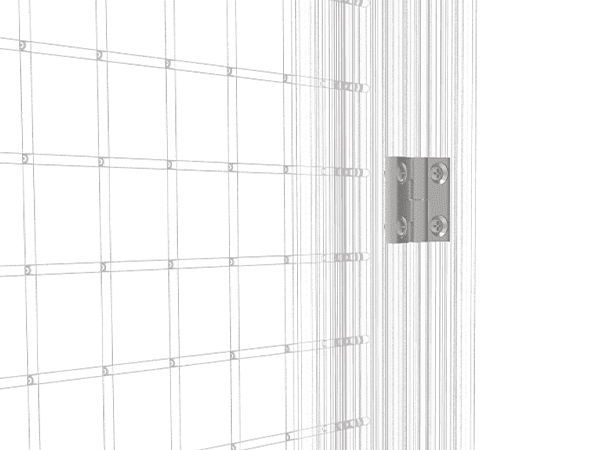

A hinge and the detail of aluminum profile robot fence gate.

HingeConnect gate and corner posts.

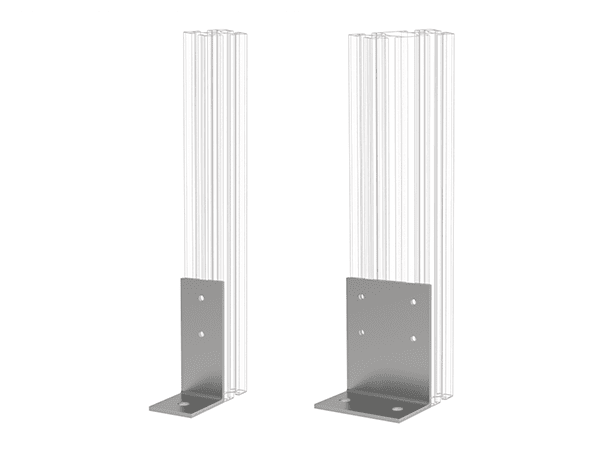

Two types of floor bracket and the detail of post and floor connections.

Floor bracketAttach fence system onto ground

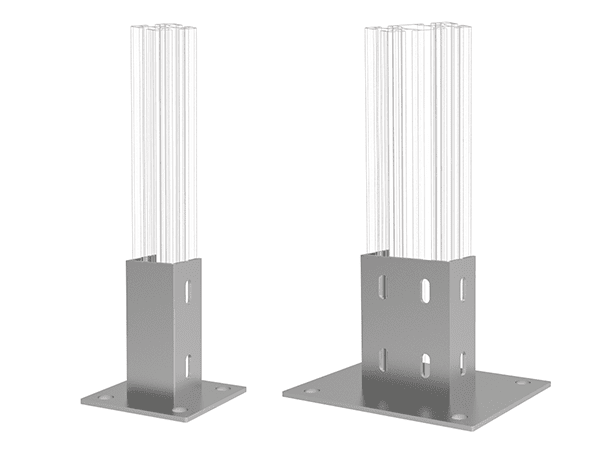

Two types of floor mount base plate and the detail of post and floor connections.

Floor mount base platettach fence system onto ground

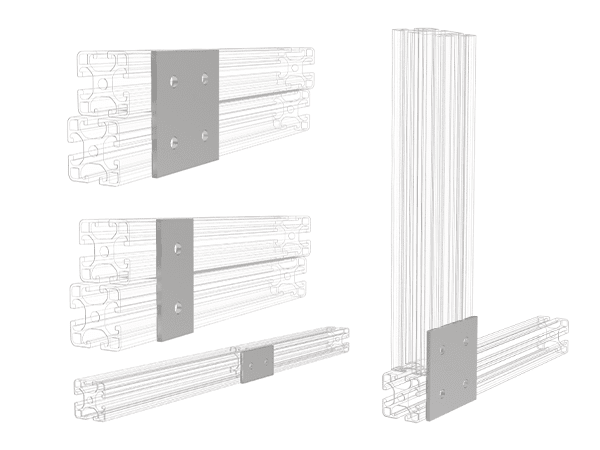

Different types of flat plate and their use of aluminum profiles robot fence connection.

Flat plateConnect corner posts or intermediate posts

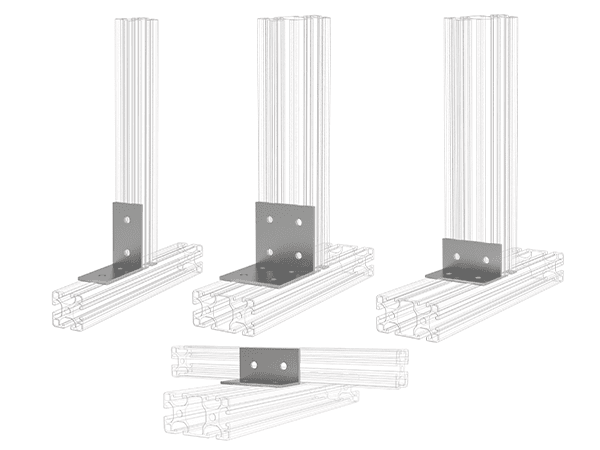

Different types of flat plate and their use of aluminum profiles robot fence connection.

L plateConnect corner posts or intermediate posts

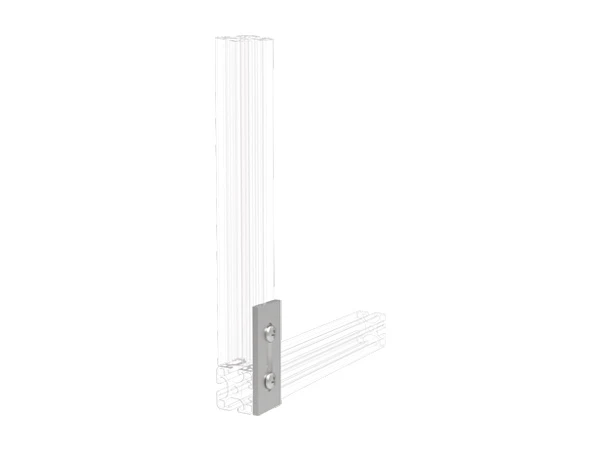

Different types of flat plate and their use of aluminum profiles robot fence connection.

Long hole plate Connect corner posts

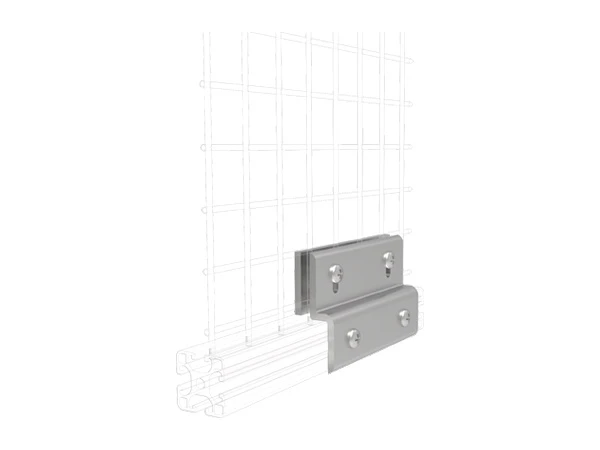

Different types of flat plate and their use of aluminum profiles robot fence connection.

Plate Connect panel and frame

Frame & panel connection accessory

The aluminum profiles and panels are easy to connect, simply install the accessory, they can be connected firmly. There are two types of connection types and accessories.

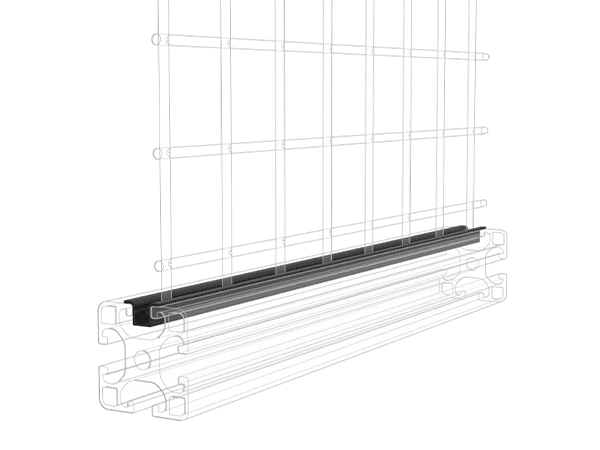

A piece of U channel and the detail of mesh panel and aluminum profile connection.

U-Channel Connection

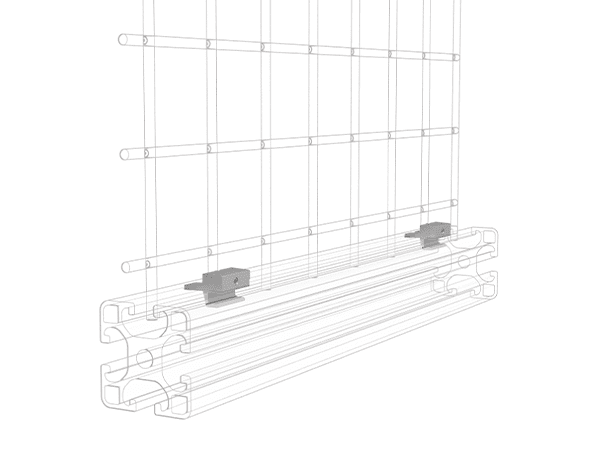

Three pieces of head fasteners and the detail of mesh panel and aluminum profile connection.

Head fastener

Features
  • Lightweight: Aluminum is much lighter than steel, making it easier to handle, transport, and install. This can result in cost savings and reduced labor requirements.
  • Corrosion Resistance: Aluminum has a natural oxide layer that provides corrosion resistance, whereas steel is prone to rust. This makes aluminum profile robot fences more durable and suitable for outdoor or corrosive environments.
  • Customization: Aluminum profiles can be easily cut, drilled, and assembled, allowing for greater flexibility in designing and customizing robot fences. They can be easily modified or expanded to accommodate changing needs or equipment layouts.
  • Aesthetic Appeal: Aluminum profiles have a sleek and modern appearance that can enhance the visual appeal of the robotic system. They can be anodized or powder-coated in various colors for a more attractive finish.
  • Electrical Insulation: Unlike steel, aluminum is non-magnetic and electrically non-conductive. This makes aluminum profile fences suitable for applications where electrical insulation is necessary, such as around sensitive equipment or in areas with electromagnetic interference concerns.
Applications

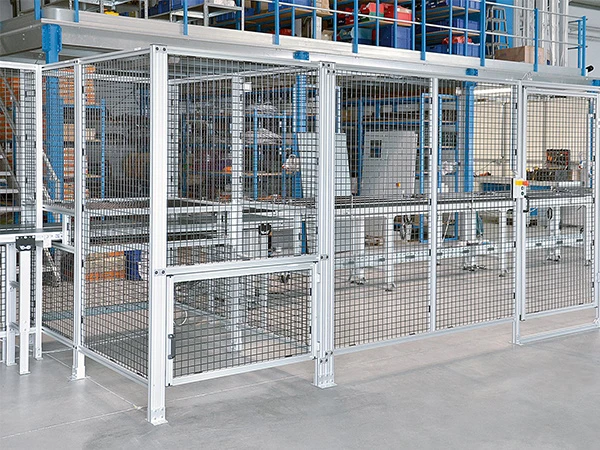

The outside of the production line machine is equipped with aluminum profiles robot fences

Aluminum profiles robot fences

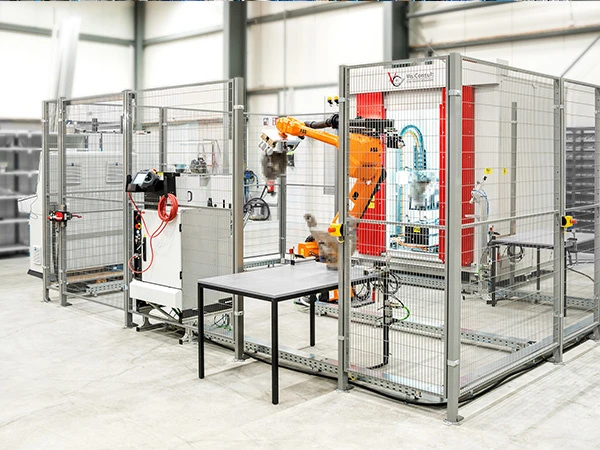

The outside of the working robot is equipped with aluminum profiles robot fences

Aluminum profiles robot fences

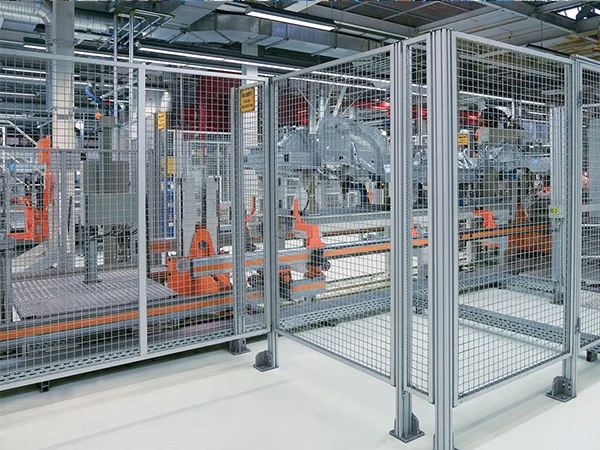

Aluminum profiles robot fences are installed around the assembly line in the factory to ensure safety

Aluminum profiles robot fences
