Warehouse Partition for Safe & Efficient Storage

Warehouse partition is not only a cost-effective storage solution, but also a flexible solution too. The partition separates work areas and goods from people and passageways in a secure way. It ensures not only the safety of operators and efficient storage of goods, but also the free movement of forklifts on forklift truck passageways.

Warehouse partition is easy to install and disassembly. It can be fully relocated and assembled after disassembling, which makes it an ideal choice for both temporary and long term applications.

It is widely used in workshops for planning & separation and warehouses for goods classification & storage. It is mainly used to separate work areas by position and effectively improve the working environment and realizing the reasonable planning of factories and operating space.

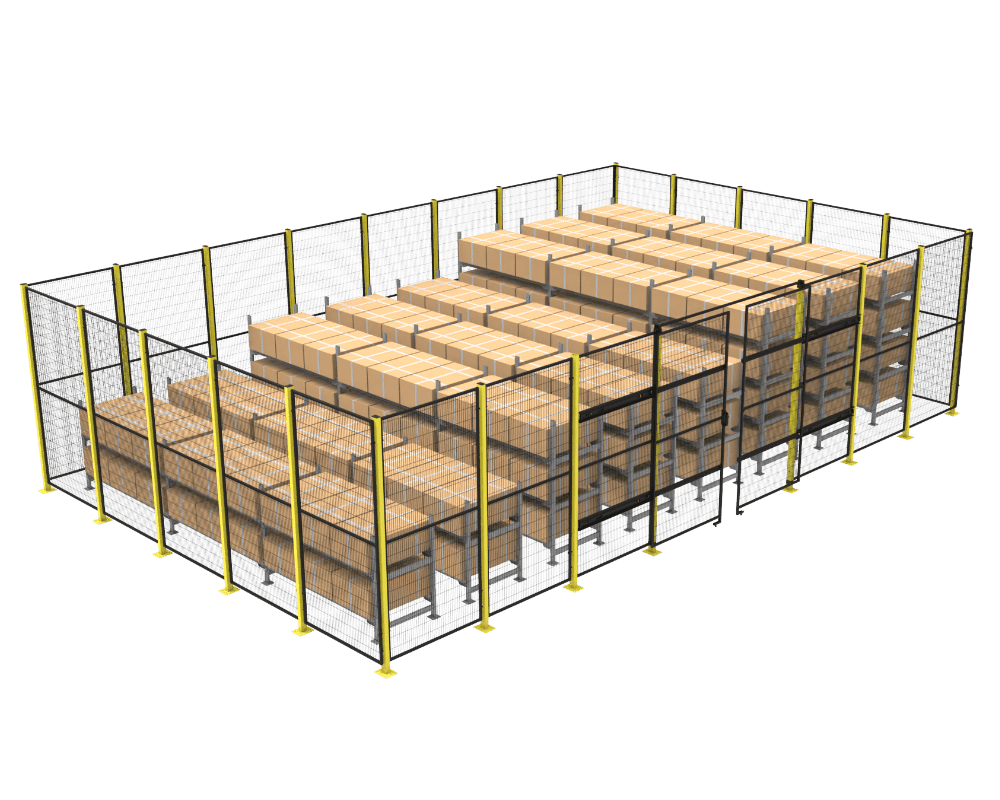

Structure & Main Components

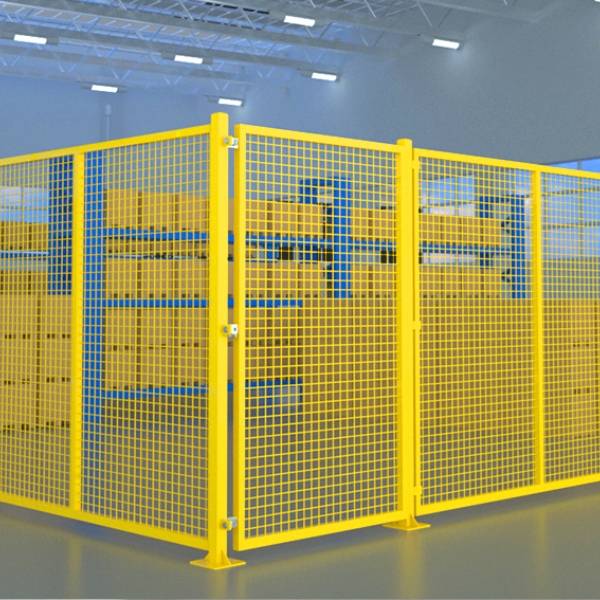

A warehouse partition fence with several goods in the fence.
1
Welded mesh panels
Welded mesh panels

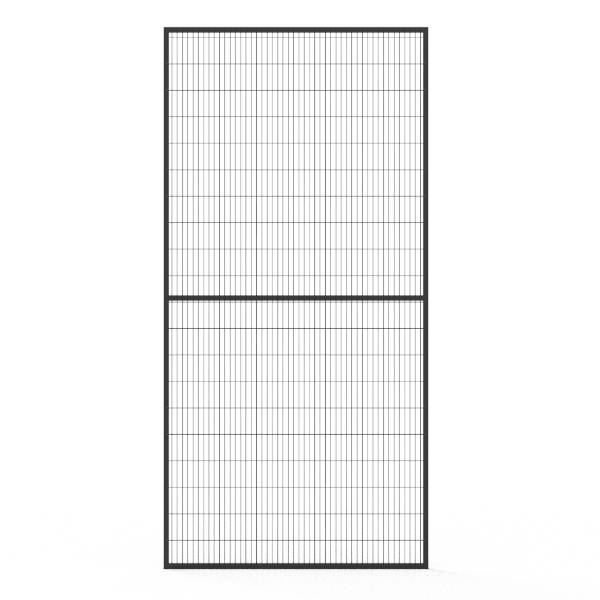

A black welded mesh panel for warehouse partition
×
2
Posts
Posts

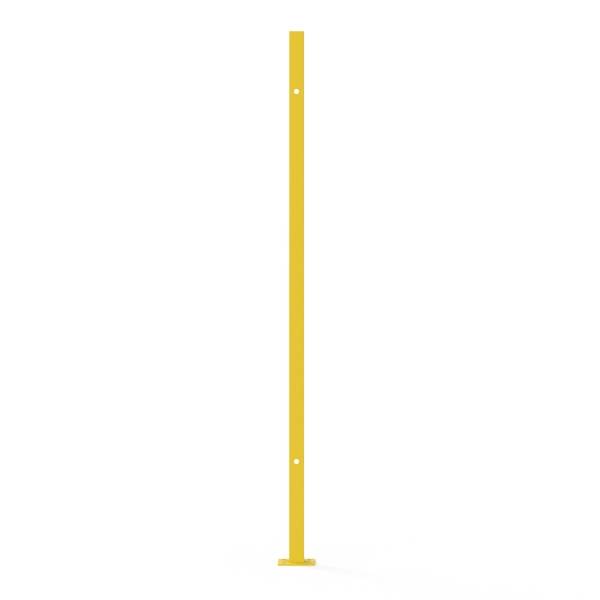

Yellow post for warehouse partition
×
3
Doors (optional)
Doors (optional)

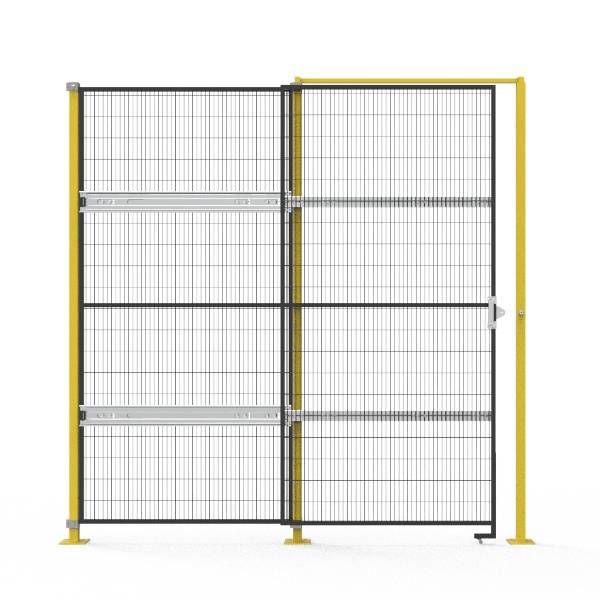

Double folding door for warehouse partition
×
Features
  • Reasonable area planning for efficient storage.
  • Modular installation is adopted for flexible installation and removal. It can be both temporarily used and reused.
  • Mesh panels comes in a variety of heights and widths for your option to suit to dimensions of all tailor-made warehouse partition systems.
  • Welded mesh panels offer a clear and unobstructed view. It allows light, air and fire extinguishing systems passing through easily while maintaining its structural stability in the best way.
  • Optional door components: swing door, sliding door, top rail door or folding door.
  • Electro galvanized or powder coating is employed for surface treatment to ensure the luster and corrosion resistance of the warehouse partition.
Technical Data
  • Panel height: 2000/2200/2500 mm.
  • Panel width: 250/500/750/1000/1250/1500/1750/2000 mm.
  • Mesh size: 20 × 50 mm, 20 × 100 mm, 30 × 30 mm, 40 × 40 mm, 50 × 50 mm.
  • Wire diameter: 3.0/4.0/5.0 mm.
  • Color: standard is RAL 9005 black and RAL 1023 yellow. Other RAL colors are available.
  • Safety distance: 120/200/850 mm.
