Our commonly used doors for machine guarding systems and warehouse partitions include swing doors, sliding doors, top rail door and folding door. Every door has its own advantages. How to choose a door perfectly suit to your working environments? You may find a clue by reading the comparison table among these doors.

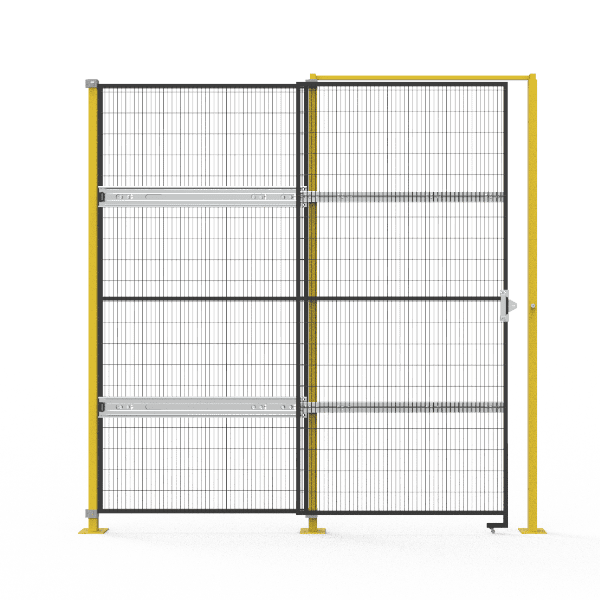

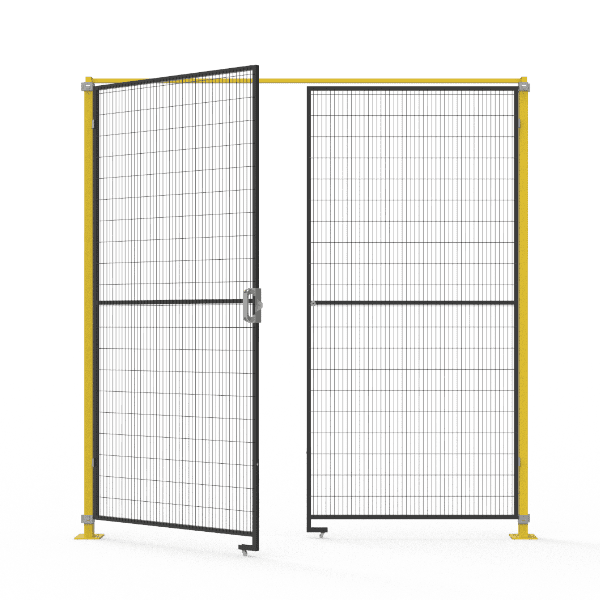

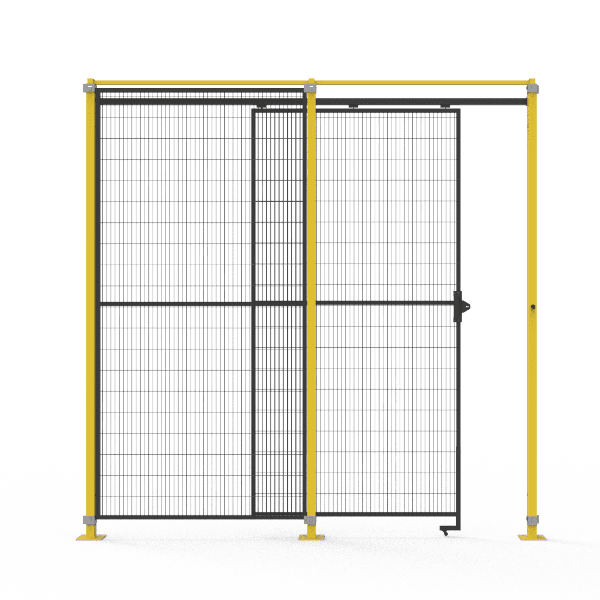

Swing Doors | Sliding Doors | Top Rail Door | Folding Door | |
---|---|---|---|---|
Img | ||||
Opening Angle | 160° | 180° | 180° | 160° |
Opening Direction | Only outward | Slide left and right | Slide left and right | Push inward and then fold folding door mesh panels outward |
Fixation method | Hinge | Rails on the middle part of the fixed mesh panel | Rails on the top of frame | Hinge |
Adaptability in Field | For places with enough space and tight budget | For limit space | For limited space | For places requiring a large opening. |
Durability |
|
|
|
|
Standard height | 1500–3000 mm | 1500–3000 mm | 1500–3000 mm | 1500–3000 mm |
Available width | Max. 1400 mm (single door) Max. 2800 mm (double door) |
Max. 1400 mm (single door) Max. 2800 mm (double door) |
Max. 3000 mm | Max. 3000 mm (single door) Max. 4000 mm (double door) |
Material | Low carbon steel | Low carbon steel | Low carbon steel | Low carbon steel |
Finish | Powder coating | Powder coating | Powder coating | Powder coating |
Standard color | Black panels & yellow post | Black panels & yellow post | Black panels & yellow post | Black panels & yellow post |
Other colors | Yes | Yes | Yes | Yes |
Fastening method | Hinge | Slide rail | Top rail | Hinge |
