Corner Panel – Saved Space & More Safe Area

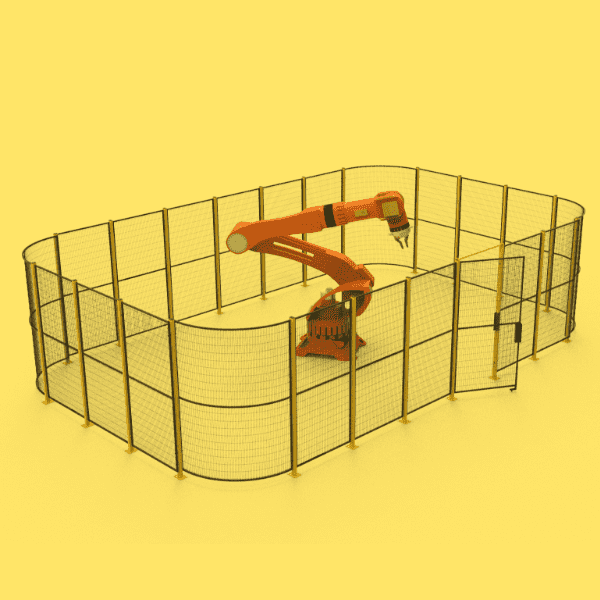

Machine guarding corner panel is specially designed part of machine guarding system. It has round corners, which can not only save ground spaces but also supply more safe edge. it is specially design for area which have strict space limitation and high safety demands.

The panels are available in three different heights: 2000 mm, 2200 mm and 2500 mm and in 90° angle.

Technical Data
  • Heights: 2000/2200/2500 mm
  • Angle: 90°
  • Wire diameter: 3.0/4.0/5.0 mm
  • Mesh size: 20 × 50 mm, 20 × 100 mm, 30 × 30 mm, 40 × 40 mm, 50 × 50 mm
  • Frame type: square pipes or angle bar
  • Frame pipe size: 20 × 20 mm, 20 × 30 mm
  • Frame pipe thickness: 1.5 mm.
  • Angle bar frame size: 30 × 30 mm
  • Finish: powder coating
  • Color:
    A RAL 9005 black color.

    Standard is black RAL 9005.

    A RAL color board.

    Available for other RAL colors.

Mesh Options

Corner panel is available for weld-mesh and crimp mesh and it can perfectly compatible with our standard machine guarding panels and posts.

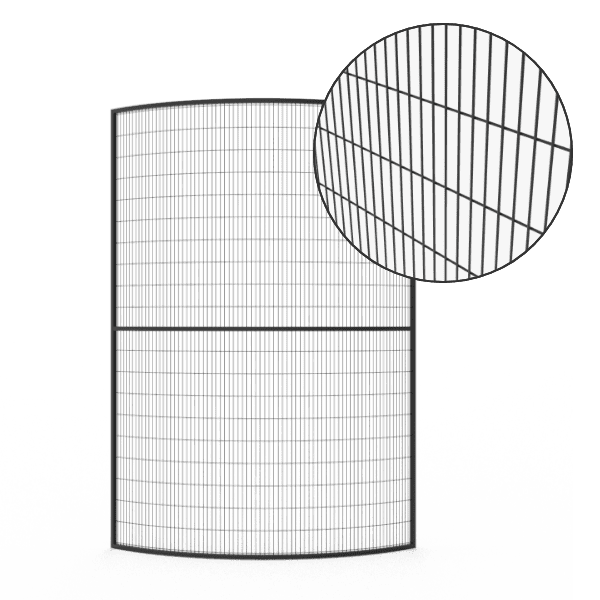

A piece of weld-mesh machine guarding corner panel.

Weld-mesh corner panel

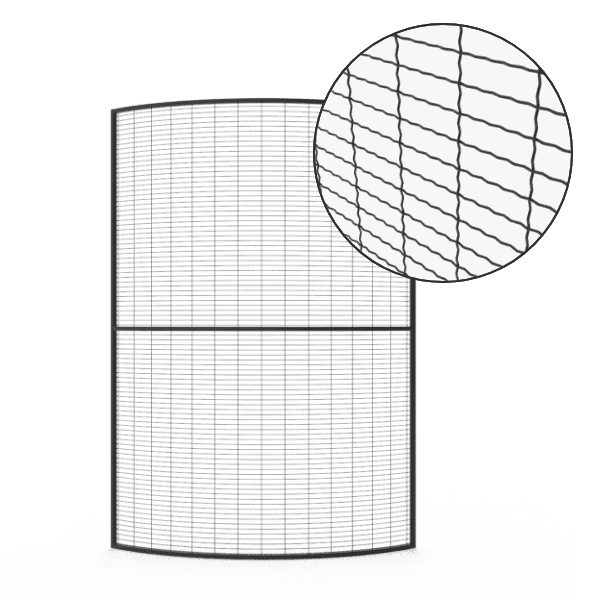

A piece of crimp-mesh machine guarding corner panel.

Crimp-mesh corner panel

Frame Options

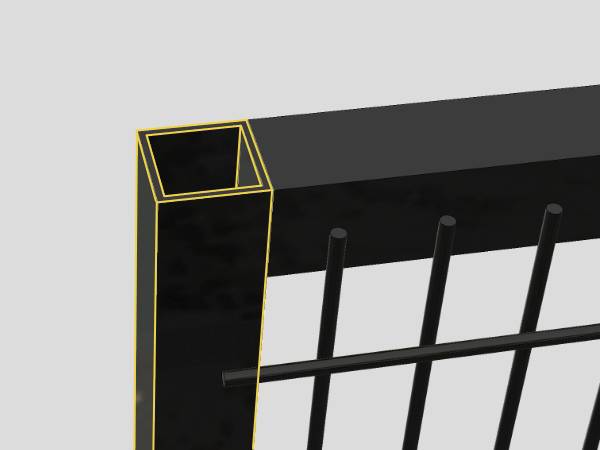

A piece of machine guarding corner panel with square pipe frame.

Pipe Frame

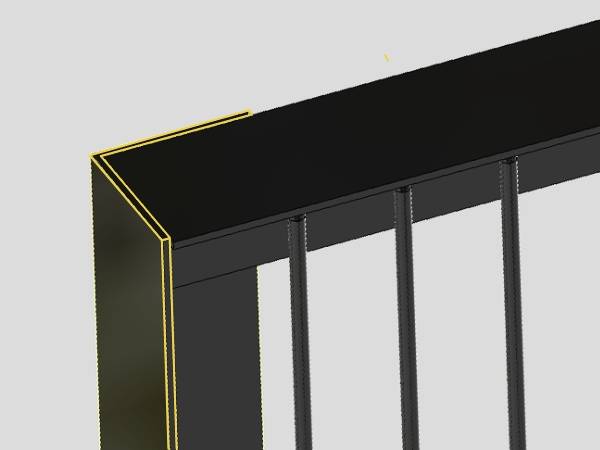

A piece of machine guarding corner panel with angle frame.

Angle Frame

Installation Options

There are two installation types for different installation requirements. The clamp installation allows quick and efficient installation, which is suitable for emergent or urgent installation. The bolts and nuts installation is standard and supplies higher security grade. It is suitable for places where has higher security requirements.

Corner Panel: Clamp Installation and Bolts & Nuts Installation
