Machine Guarding System Inventory Specifications Table

Automated equipment saves time, labor and money, but it also puts your employees at risk,especially if you don’t have the right safeguards in place. When it comes to protecting your personnel from many dangers associated with working with automated equipment, Metan guard is an easy yet effective way to promote workplace safety. Metan guard offers many different machine guard fencing, each suitable for a variety of different demands and requirements.

In order to ship quickly, we have some common sizes in stock for your reference as following.

If you have different demand, we also can customized as per your requirements.

Common Size Specifications:
  • Color: Yellow or black
  • Surface: Powder coated
  • Mesh:20 × 100 × 3.0 mm
  • Frame:20 × 20 × 1.0 mm
  • Fence Post:
    • 40 × 60 × 1.4 mm
    • 60 × 60 × 1.4 mm
Table 1: Existing Sizes of Machine Guarding System Height 1200 mm
Type Panel Height Panel Width Center Distance of Posts
- mm m mm
MT-1210 1000 1000 1070
MT-1215 1000 1500 1570
Table 2: Existing Sizes of Machine Guarding System Height 1500 mm
Type Panel Height Panel Width Center Distance of Posts
- mm m mm
MT-1503 1350 300 370
MT-1505 1350 500 570
MT-1508 1350 800 870
MT-1510 1350 1000 1070
MT-1512 1350 1200 1270
MT-1515 1350 1500 1570
MT-1520 1350 2000 2070
Table 3: Existing Dimensions of Machine Guarding System Height 2000 mm
Type Panel Height Panel Width Center Distance of Posts
- mm m mm
MT-2002 1850 200 270
MT-2003 1850 300 370
MT-2005 1850 500 570
MT-2008 1850 800 870
MT-2010 1850 1000 1070
MT-2012 1850 1200 1270
MT-2015 1850 1500 1570
Gallery

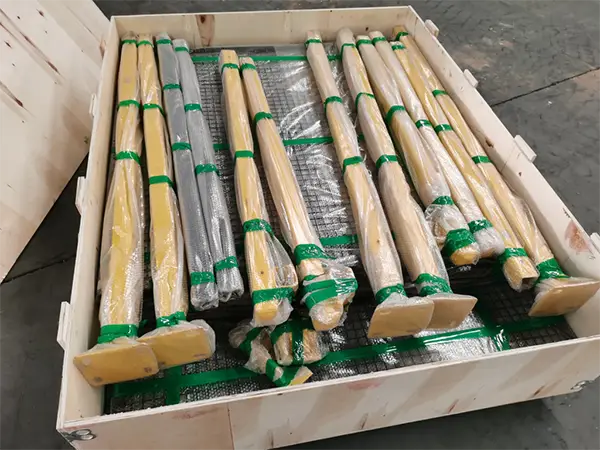

The posts of the machine guarding system are wrapped and secured with green tape.

Wooden box packaging

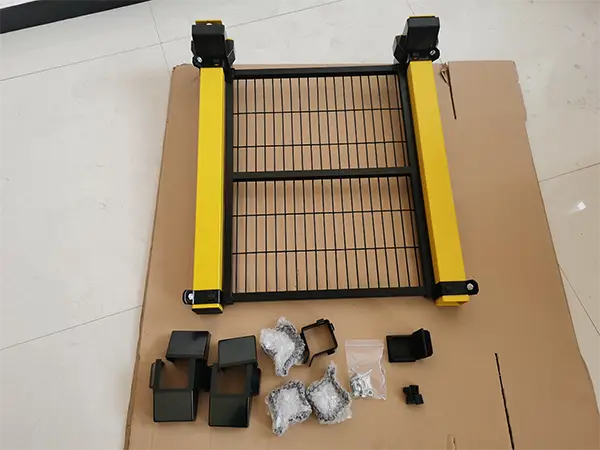

Installation accessories of the machine guarding system are placed on a cardboard box.

Installation accessories

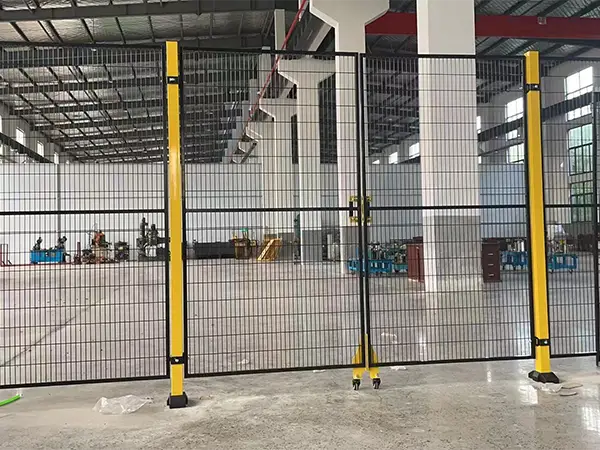

Double door installation of the machine guarding system inside the factory.

Double door installation

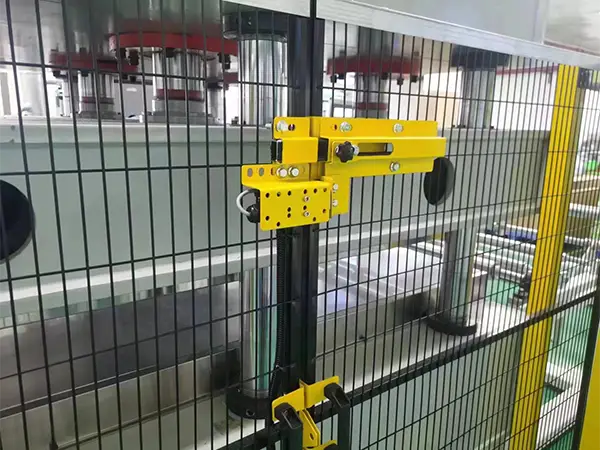

Door lock installed at the entrance of the machine guarding system

Door lock installation
