What Are The Differences Between Pipe Frame and Angle Frame?

Mesh panels for machine guarding systems and warehouse partitions are mesh panels with frames as they can provide extra durability and impact resistance. Frames commonly used for mesh panels include pipe frames and angle frames. How to choose an appropriate frame for your mesh panels? Read the following panel frame comparison, you may have your answer.

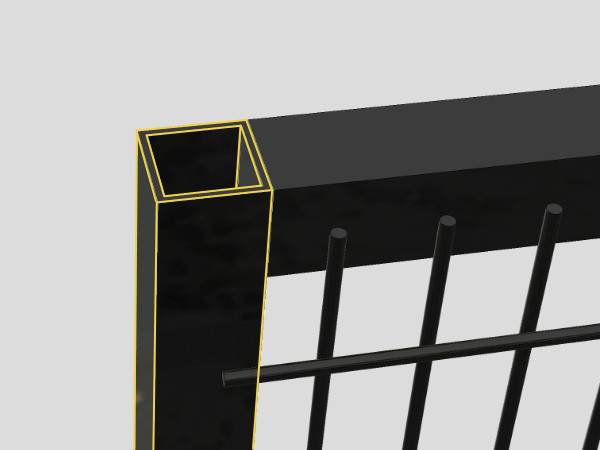

Weld-mesh panel with pipe frames

Weld-mesh panel with pipe frames

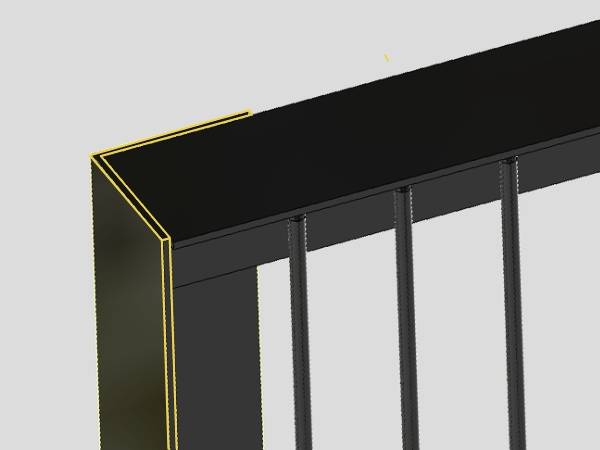

Weld-mesh panel with angle frames

Weld-mesh panel with angle frames

Pipe Frame and Angle Frame Comparison

01. Raw Material

Pipe frame is made of square tubes by welding while angle frame is constructed of angle steel by welding.

Square tube

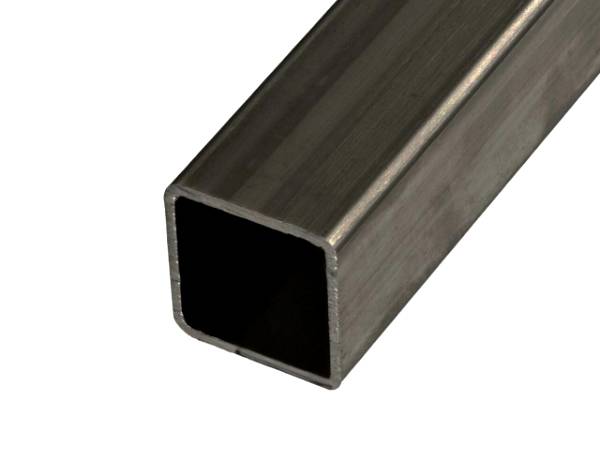

Square tube for pipe frame

Angle steel

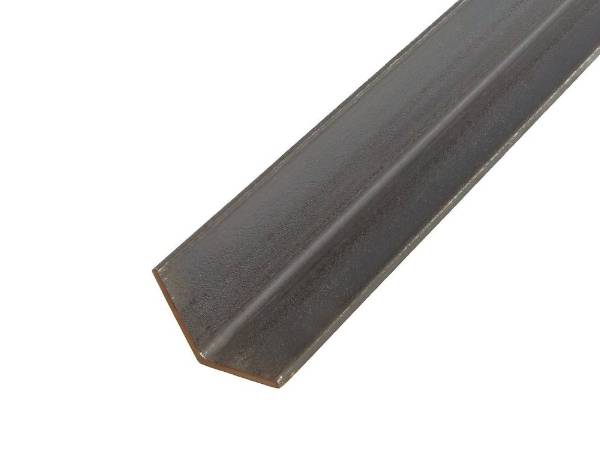

Angle steel for angle frame

02. Frame Inclined Cutting Machines

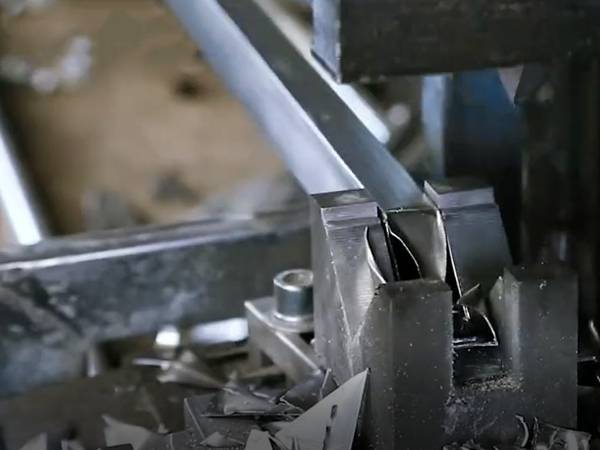

Square tube inclined cutting machine

Square tube inclined cutting machine

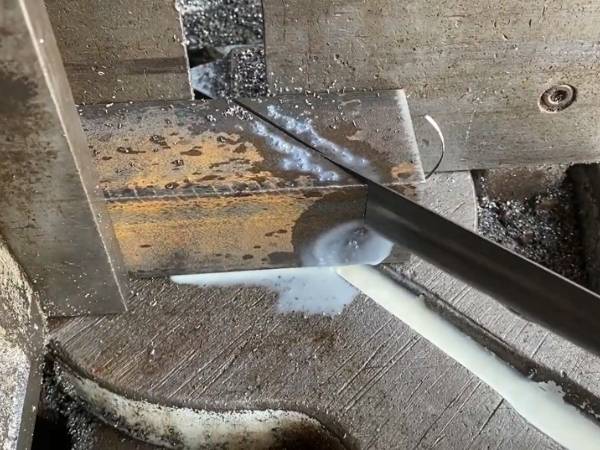

Angle steel inclined cutting machine

Angle steel inclined cutting machine

03. Welding Technology
  • The pipe frame welding is conducted on the outer side of the square tube joints and advanced welding technology is adopted, leaving no welding joints on the outer surface and offering a smooth, flat and beautiful surface.
  • The angle frame welding is carried out on the inner side of the steel angle. All welding joints are perfectly concealed below the frame, thereby offering a smooth, flat and beautiful surface.

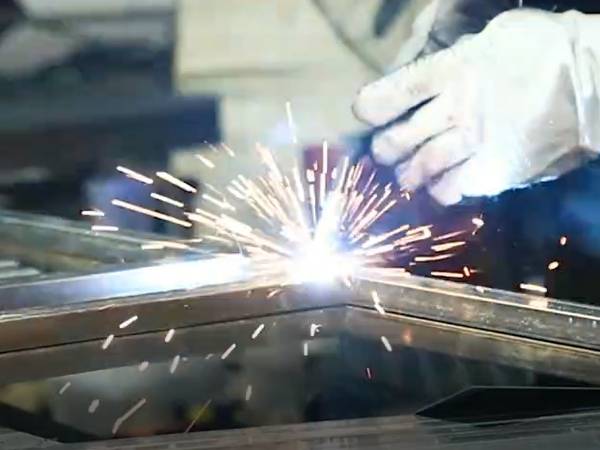

The welder is welding the pipe frame

Pipe frame welding technology

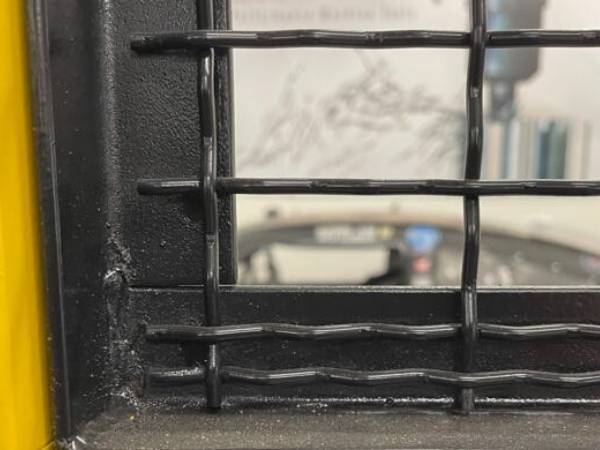

Crimp-mesh panel with angle frames

Angle frame welding technology

04. Cost

Generally, pipe frame costs higher and angle frame costs less.

You may choose frames suit to your mesh panels according to your working environment and budget. If you need more help, please contact us, we are always there and ready to help you at any time.
