Single & Double Swing Doors Facilitate Authorized Personnel In & Out

Swing door is a kind of door installed at the entrance of the machine guarding systems to facilitate authorized personnel in and out as well as door open & close. It generally adopts hinges to connect with posts. When it swings outward, the door is open with an open angle of 160 ° and when it swings inward, the door is closed.

Weld-mesh panel or crimp-mesh panel may be selected as swing door panels.

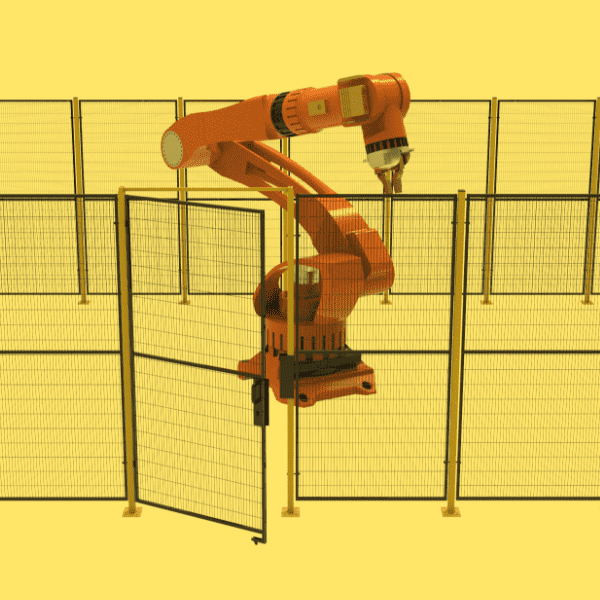

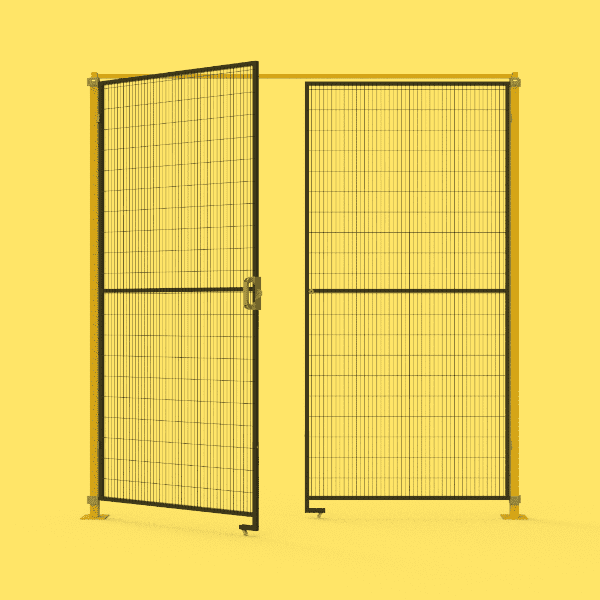

Swing doors are divided into single hinged doors and double hinged doors. With a maximum width of 1400 mm, single hinged doors are commonly used in the entrance and exit of machine guarding systems to facilitate serviceman access to adjust or repair the machinery. With a maximum width of 2800 mm, double hinged doors are typically used in loading and unloading areas, mold change areas as well as container exit points.

Structure & Components

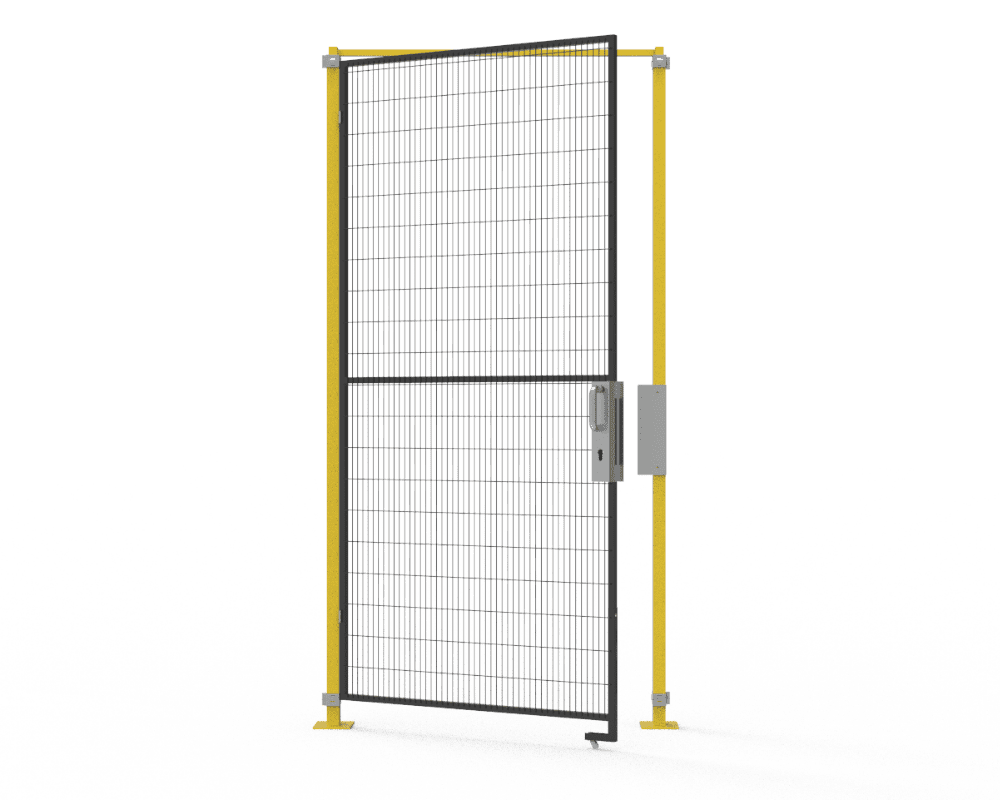

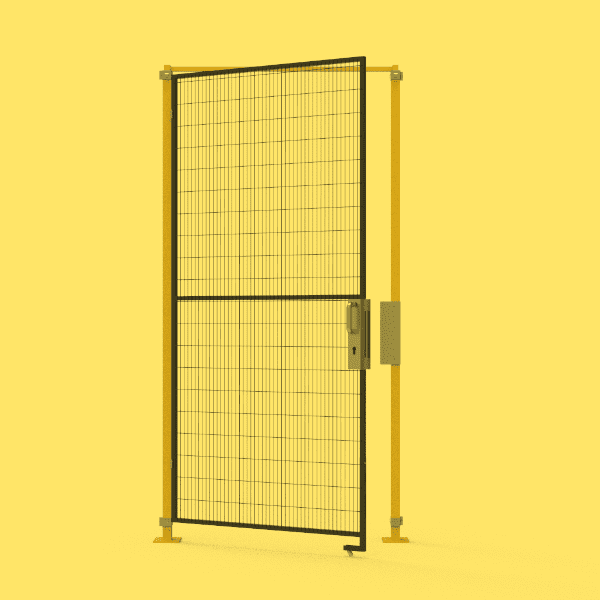

Single hinged door structure diagram
1
Door panel:
weld-mesh panel or crimp-mesh panel
Weld-mesh panel

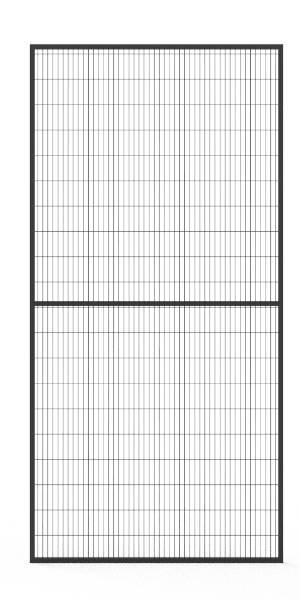

Swing door made of weld-mesh panel
Crimp-mesh panel

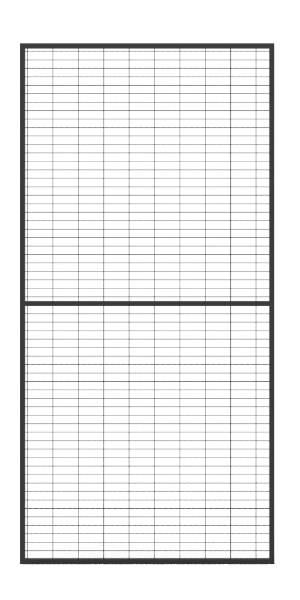

Swing door made of crimp-mesh panel
×
2
Top frame
Top frame

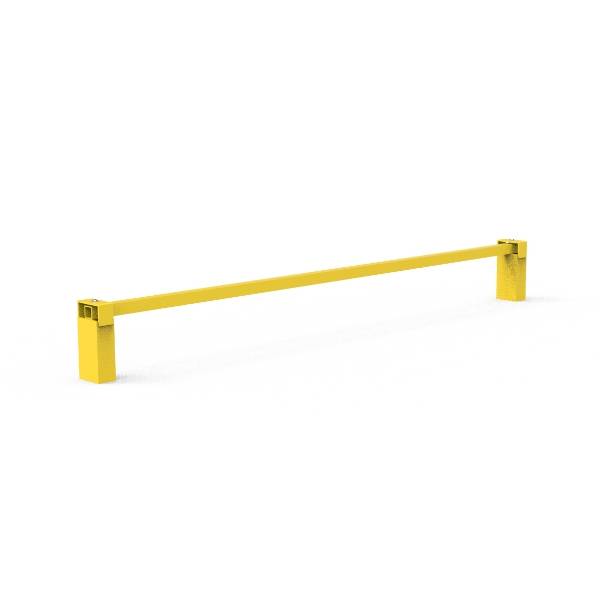

Yellow top frame kit
×
3
Top frame fastener
Top frame fastener

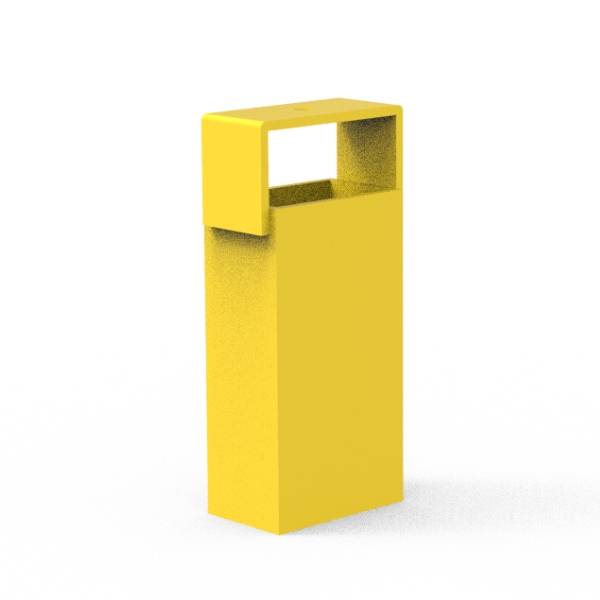

Yellow top frame fastener
×
4
Fixed clamp
Fixed clamp

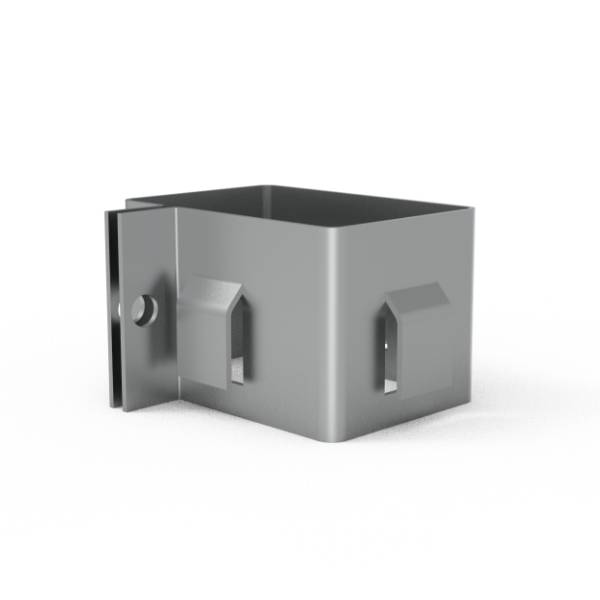

Frame fixing clamp for swing door installation
×
5
Hinge
Hinge

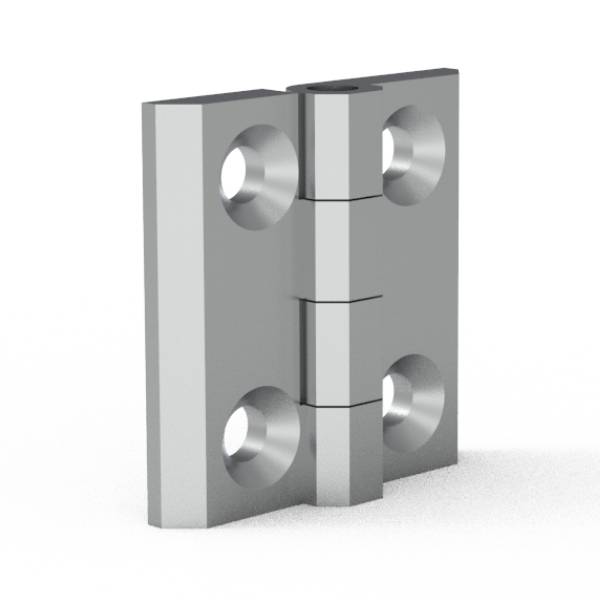

Hinge
×
6
Safe lock
Safe lock

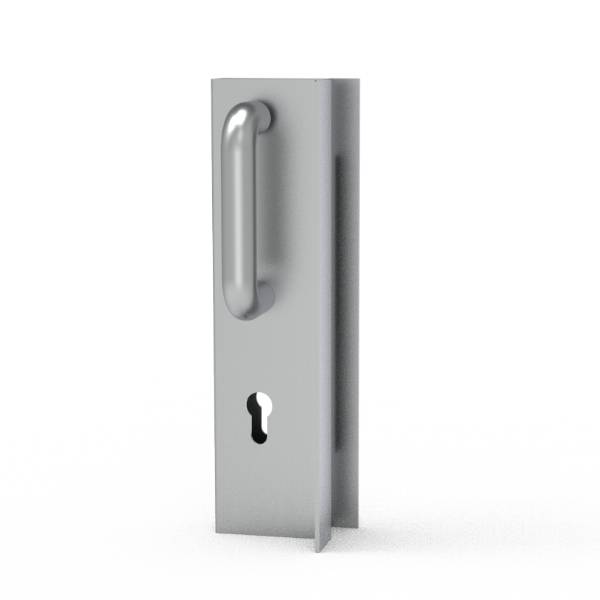

Safe lock
×
7
Support wheel kit
Support wheel kit

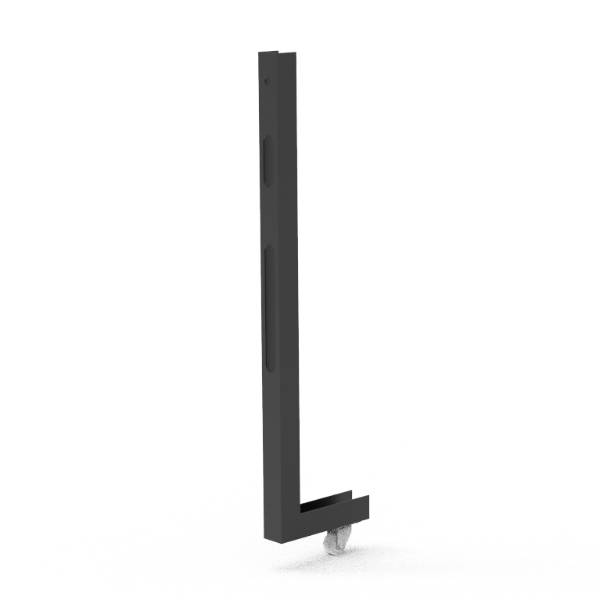

Support wheel kit
×
Features
  • When the hinge door opens, it swings outward.
  • When the swing door is closed, door and posts are in one plane with no gaps and offer a simple appearance.
  • Few installation accessories are required, easy to install.
  • You may choose a single hinged door or a double hinged door according to your working environment.
Technical Data
  • Door open angle: 160°.
  • Height: 1500–3000 mm.
  • Maximum width: 1400 mm (single door), 2800 mm (double door).
  • Surface treatment: Electro galvanized, powder coating.
  • Color: black (RAL 9005) for panel, yellow (RAL 1023) for post
  • Material: Q235 carbon steel.
