Crimp-Mesh Panels – Rigid Mesh for Safety Guarding

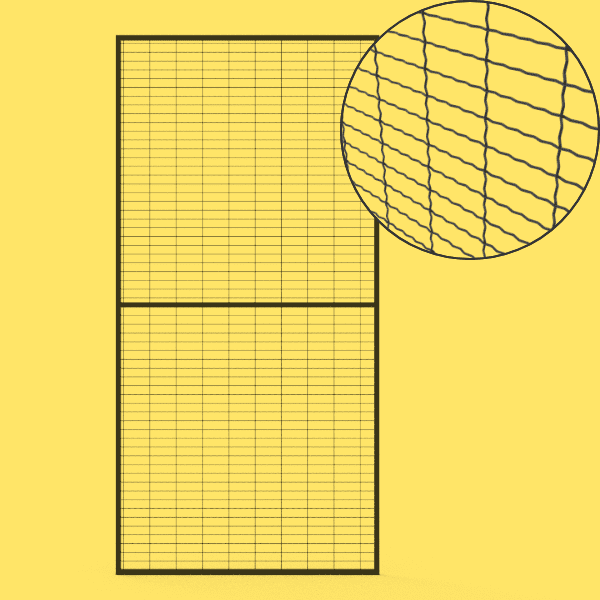

Crimp-mesh panel is an alternative to weld mesh panels. It adopts pre-crimped steel wire and then woven into mesh panels. It has regular openings and beautiful appearance. Pre-crimped mesh opening can prevent deformation even under severe impacts.

It has various diameters and opening mesh sizes to suit different impact resistance grade and machine or equipment sizes. Besides, different post combination and connection method can greatly improve the impact resistance performance and security grade.

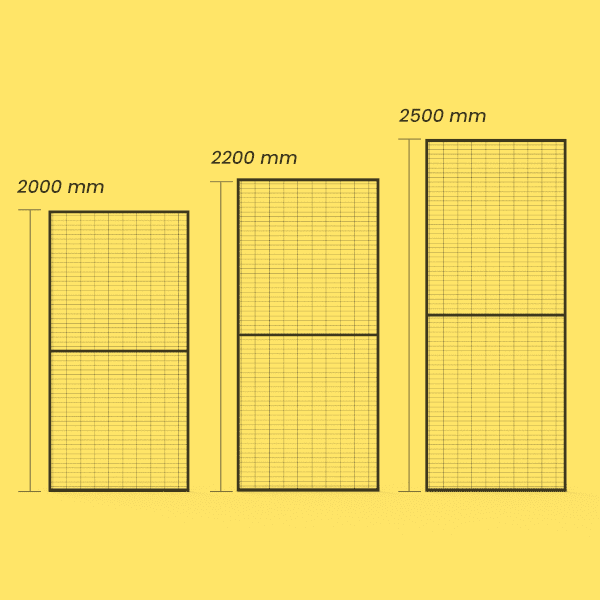

The panels are available in three different heights: 2000 mm, 2200 mm and 2500 mm to suit different height of machines and robots.

Technical Data

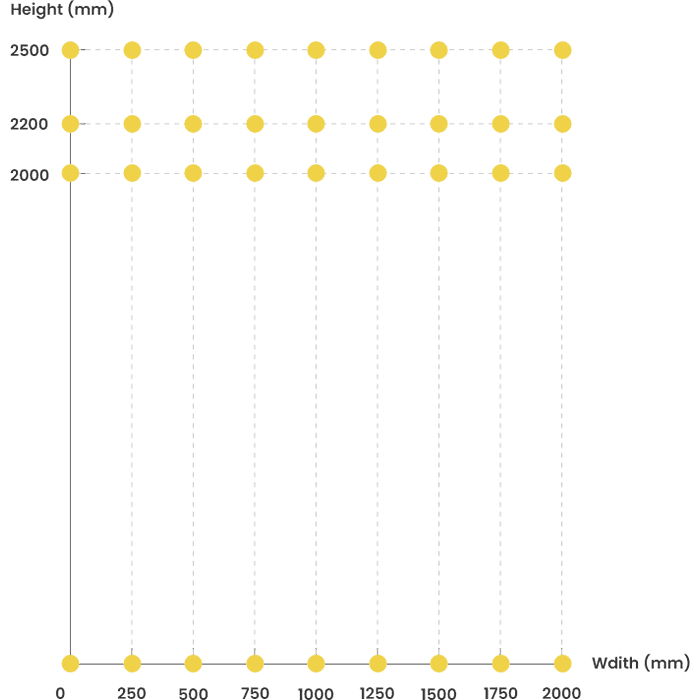

A drawing shows crimp-mesh width and height data.
  • Panel Height: 2000/2200/2500 mm.

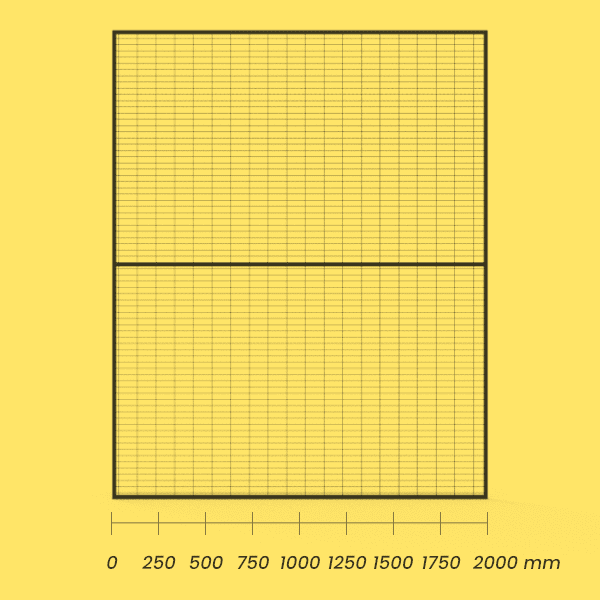

  • Panel Width: 250/500/750/1000/1250/1500/1750/2000 mm
  • Mesh Size: 20 × 50 mm, 20 × 100 mm, 30 × 30 mm, 40 × 40 mm, 50 × 50 mm
  • Wire Diameter: 3.0/4.0/5.0 mm.
  • Color:
    A RAL 9005 black color.

    Standard is RAL 9005 black.

    A RAL color board.

    Other RAL colors are available.

  • Safety distance: 120/200/850 mm
Frame Options
A piece of crimp-mesh machine guarding fencing with square pipe frame.

Pipe Frame

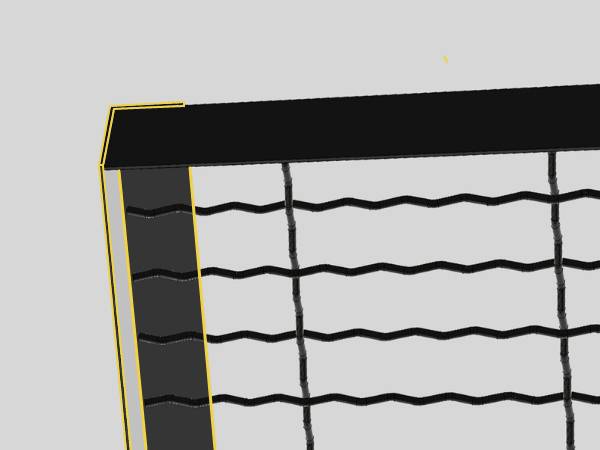

A piece of crimp-mesh machine guarding fencing with angle frame.

Angle Frame

Installation Options

There are two installation types for different installation requirements. The clamp installation allows quick and efficient installation, which is suitable for emergent or urgent installation. The bolts and nuts installation is standard and supplies higher security grade. It is suitable for places where has higher security requirements.

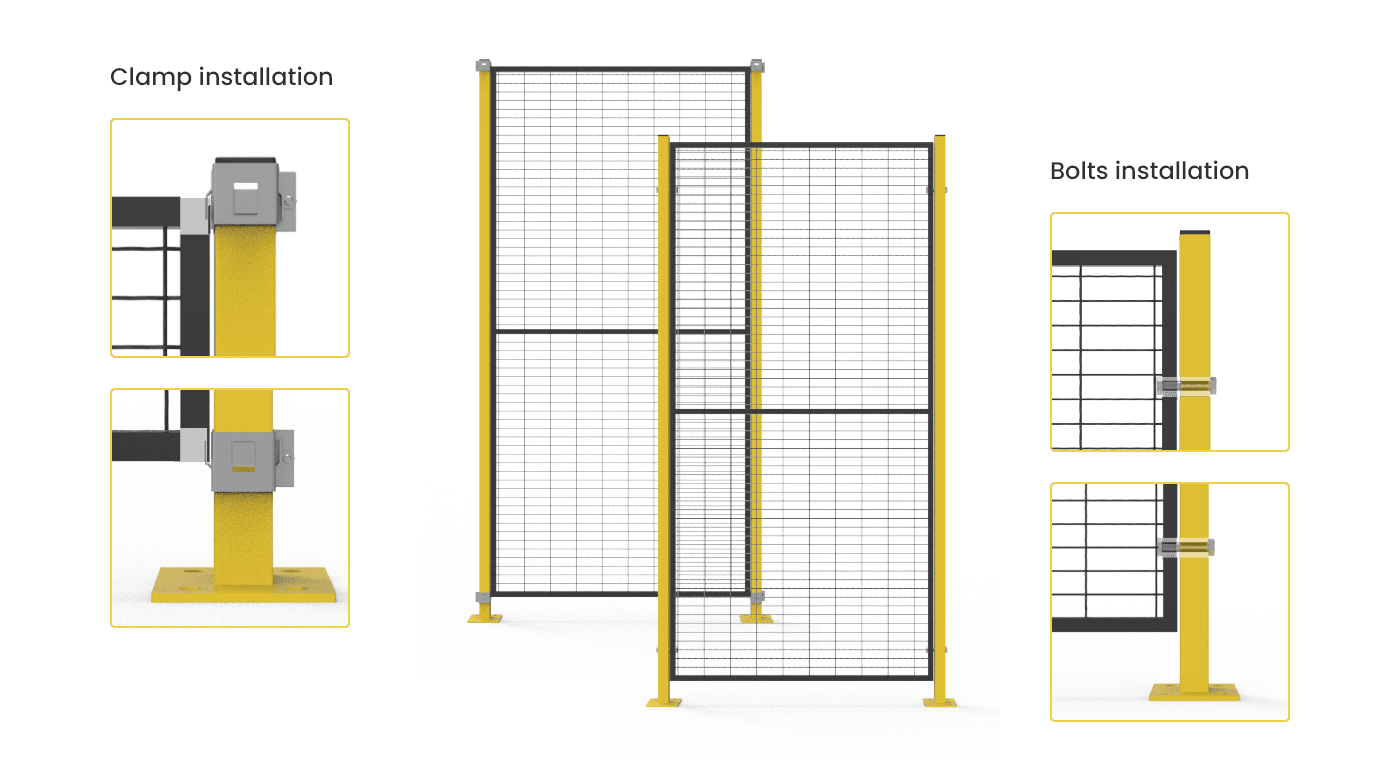

Crimp-Mesh Panels: Clamp Installation and Bolts & Nuts Installation
