Weld-Mesh Panels – Rigid & Stable Panels for Machine Guarding

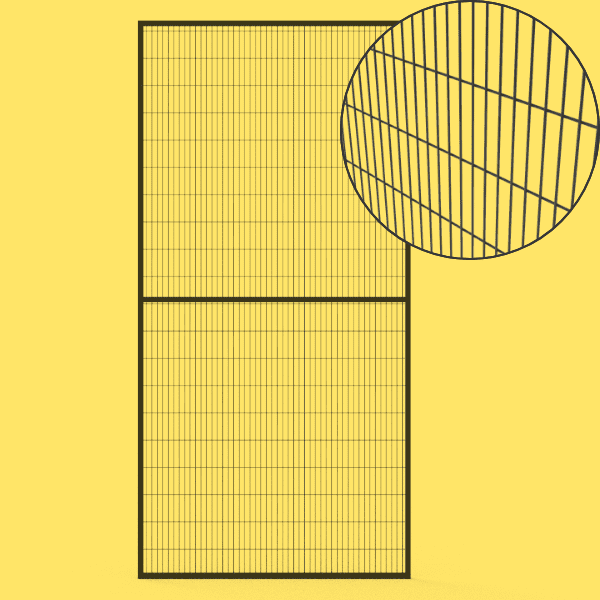

Weld-mesh panel is the most popular and widely used panel type among all machine guarding fencing system. Both panels and frames adopt automatically resistance welding performance, which has no welding point and supplies smooth and safe appearance. Flexible wire diameter, mesh size combination match most of applications at current market and factory needs. Angle and pipe frame can provide additional durability and impact resistance performance.

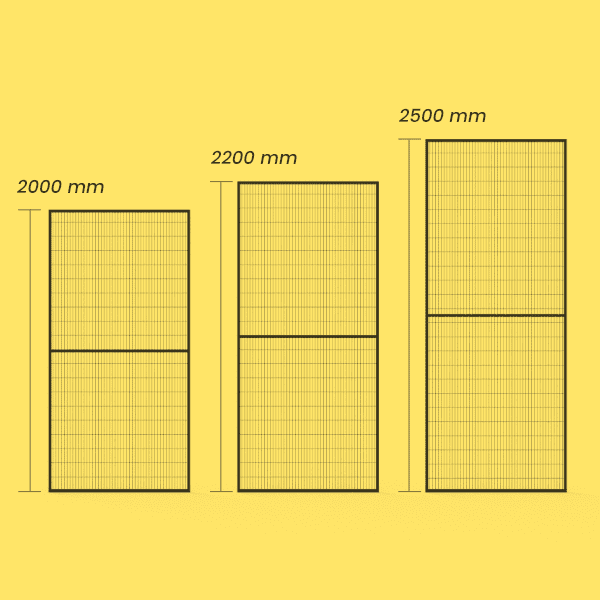

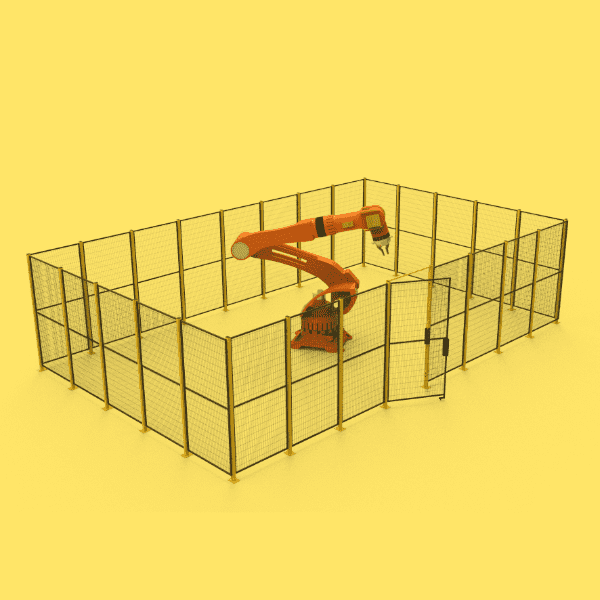

The panels are available in three different heights: 2000 mm, 2200 mm and 2500 mm to suit different height of machines and robots.

Technical Data

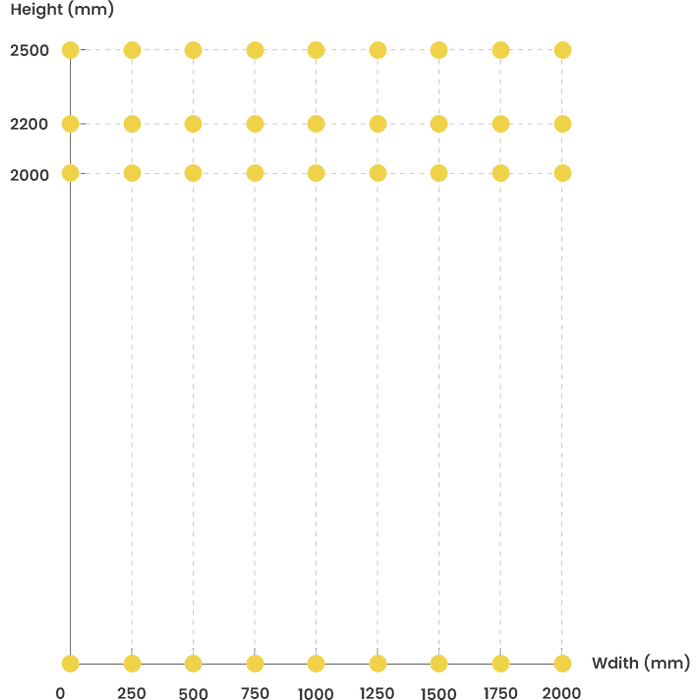

A drawing shows weld-mesh width and height data.
  • Panel Height: 2000/2200/2500 mm.

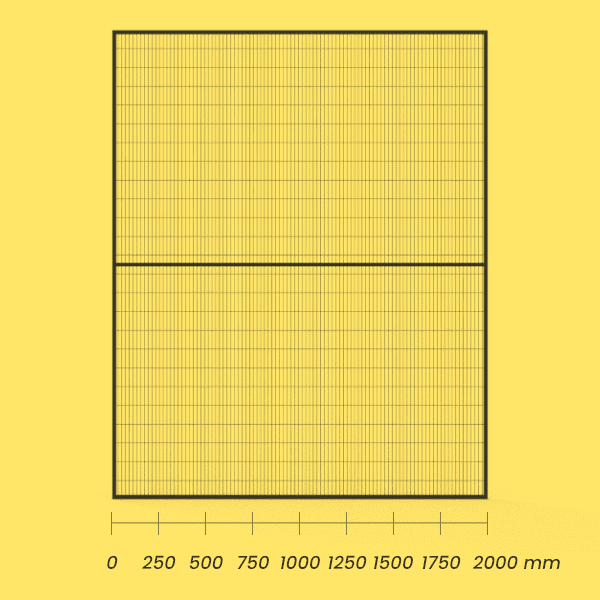

  • Panel Width: 250/500/750/1000/1250/1500/1750/2000 mm
  • Mesh Size: 20 × 50 mm, 20 × 100 mm, 30 × 30 mm, 40 × 40 mm, 50 × 50 mm
  • Wire Diameter: 3.0/4.0/5.0 mm.
  • Color:
    A RAL 9005 black color.

    Standard is RAL 9005 black.

    A RAL color board.

    Other RAL colors are available.

  • Safety distance: 120/200/850 mm
Frame Options

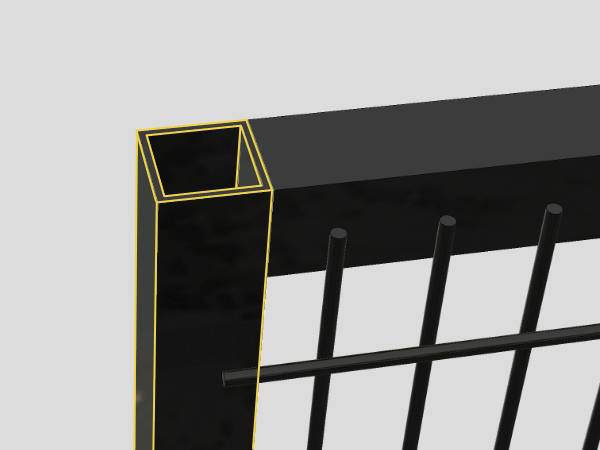

A piece of weld-mesh machine guarding fencing with square pipe frame.

Pipe Frame

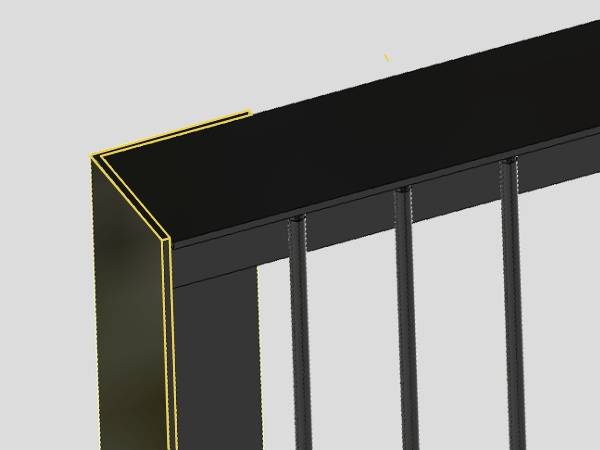

A piece of weld-mesh machine guarding fencing with angle frame.

Angle Frame

Installation Options

There are two installation types for different installation requirements. The clamp installation allows quick and efficient installation, which is suitable for emergent or urgent installation. The bolts and nuts installation is standard and supplies higher security grade. It is suitable for places where has higher security requirements.

Weld-Mesh Panels: Clamp Installation and Bolts & Nuts Installation
