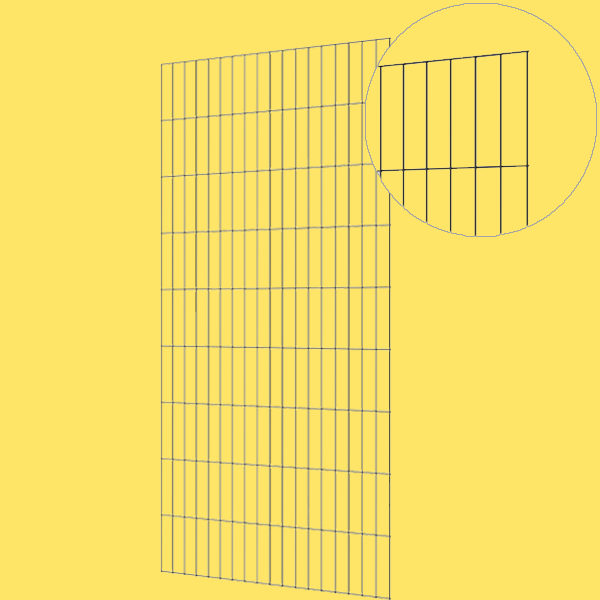

2D Fence Panel Double Wire Mesh for Strong Security

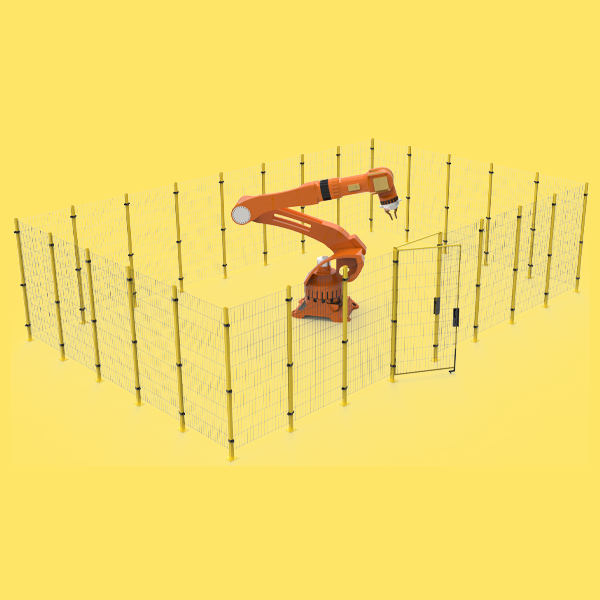

The 2D fence panel, also called a double wire fence panel, features a double-wire construction that provides strong, durable, and flexible barriers to protect personnel and equipment from automated machinery. With its thick wire diameters, it creates secure enclosures that can be customized for different applications.

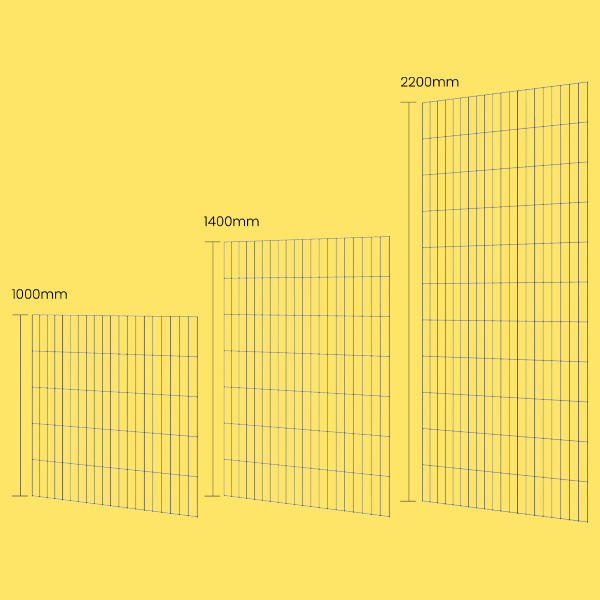

The panels are available in various heights including 1000 mm, 1200 mm, 1400 mm, 1600 mm, 1800 mm, 2000 mm, and 2200 mm, providing options to match different machine and robot sizes.

Technical Data
A drawing shows 2D fence panel width and height data.
  • Panel Height: 1000 / 1200 / 1400 / 1600 / 1800 / 2000 / 2200 mm

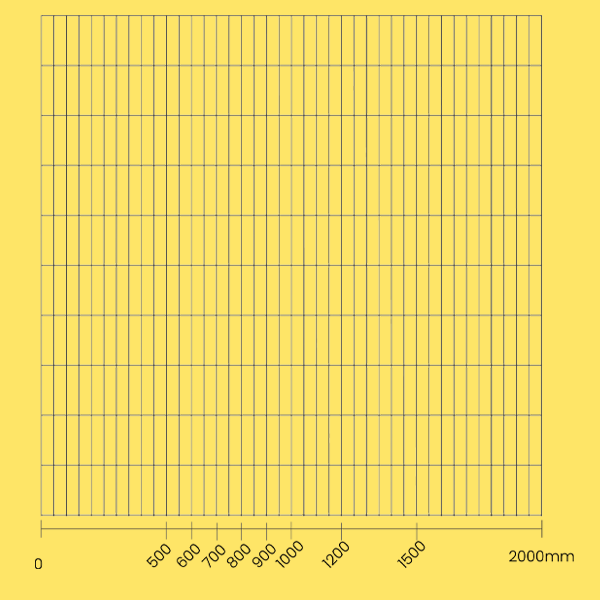

  • Panel Width: 500 / 600 / 700 / 800 / 900 / 1000 / 1200 / 1500 / 2000 mm
  • Mesh Size: 50 × 200 mm
  • Wire Diameter: 3 / 4 / 3 mm, 5 / 4 / 5 mm, 6 / 5 / 6 mm
  • Color:
    A RAL 9005 black color.

    Standard color is black for the panel and yellow for the post.

    A RAL color board.

    Other RAL colors are available.

  • Safety distance: 120 / 200 / 850 mm
Installation Options

The clamp installation allows quick and efficient installation, which is suitable for emergent or urgent installation.

3D fence panels: clamp installation and bolts & nuts installation.
