The Structure of the 3D Fence Panel is Simple and Sturdy

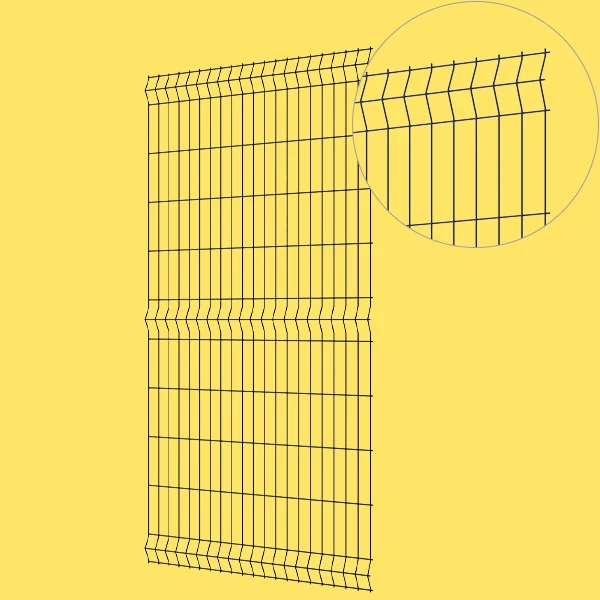

The 3D Fence Panel, also known as Curved Mesh Panels, features a unique V-shaped bending design. This design not only significantly enhances the panel's impact resistance, ensuring its shape stability during long-term use, but also provides excellent visibility and high-strength protective performance, perfectly balancing practicality and aesthetics.

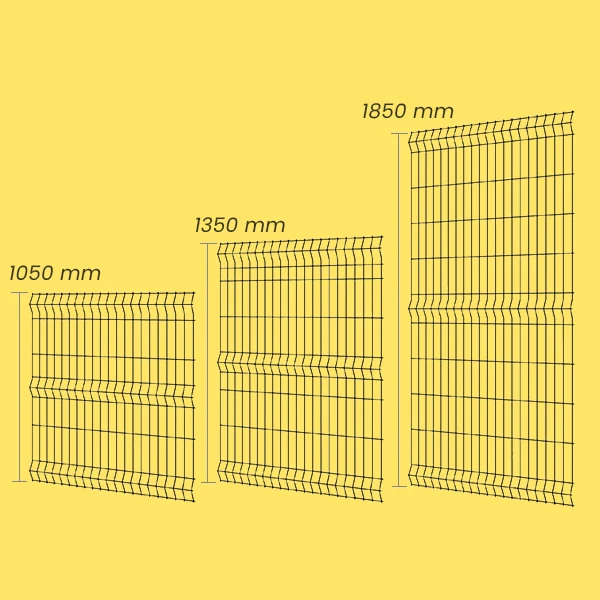

The panels are available in three different heights: 1050 mm, 1350 mm and 1850 mm to suit different height of machines and robots.

Technical Data
A drawing shows 3D fence panel width and height data.
  • Panel Height: 1050/1350/1850 mm.

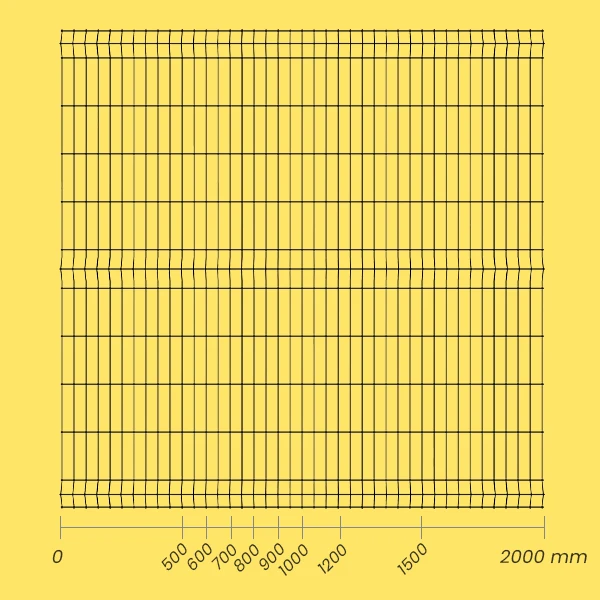

  • Panel Width: 500/600/700/800/900/1000/1200/1500/2000 mm
  • Mesh Size: 20 × 100 mm, 50 × 200 mm
  • Wire Diameter: 3.0/4.0 mm.
  • Color:
    A RAL 9005 black color.

    Standard is RAL 9005 black.

    A RAL color board.

    Other RAL colors are available.

  • Safety distance: 120/200/850 mm
Installation Options

The clamp installation allows quick and efficient installation, which is suitable for emergent or urgent installation.

3D fence panels: clamp installation and bolts & nuts installation.
